R141075161

Active

Radiall USA, Inc.

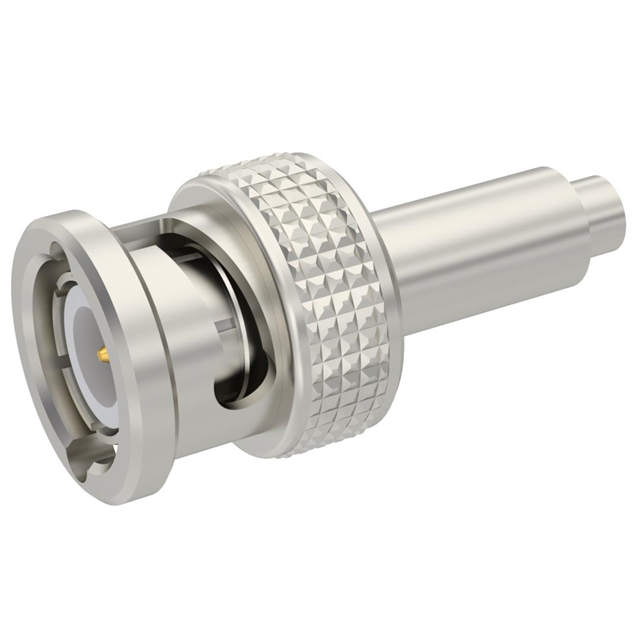

BNC / STRAIGHT PLUG CRIMP TYPE C

Search across all available documentation for this part.

Active

Radiall USA, Inc.

BNC / STRAIGHT PLUG CRIMP TYPE C

Technical Specifications

Parameters and characteristics for this part

Specification	R141075161

Body Finish	Nickel
Body Material	Brass
Cable Group	RG-174, 316
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	BNC
Connector Type	Male Pin, Plug
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock
Frequency - Max [Max]	1.5 GHz
Housing Color	Silver
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-35 °C
Shield Termination	Crimp
Voltage Rating	335 V

Part	Body Finish	Connector Type	Housing Color	Contact Termination	Voltage Rating	Body Material	Center Contact Material	Number of Ports	Impedance	Mating Cycles	Center Contact Plating	Mounting Type	Fastening Type	Cable Group	Cable Group	Operating Temperature [Min]	Operating Temperature [Max]	Dielectric Material	Connector Style	Frequency - Max [Max]	Shield Termination
Radiall USA, Inc. R141072000	Nickel	Male Pin Plug	Silver	Crimp	500 V	Brass	Brass	1	50 Ohms	500	Gold	Free Hanging (In-Line)	Bayonet Lock	141	RG-58	-65 ░C	165 °C	Polytetrafluoroethylene (PTFE)	BNC	4 GHz	Crimp
Radiall USA, Inc. R141070520	Nickel	Male Pin Plug	Silver	Crimp	500 V	Brass	Brass	1	50 Ohms	500	Gold	Free Hanging (In-Line)	Bayonet Lock	196	RG-178	-65 ░C	165 °C	Polytetrafluoroethylene (PTFE)	BNC	1.2 GHz	Crimp
Radiall USA, Inc. R141075000	Nickel	Male Pin Plug	Silver	Crimp	335 V	Brass	Brass	1	50 Ohms		Gold	Free Hanging (In-Line)	Bayonet Lock		316 RG-174	-65 ░C	165 °C	Polytetrafluoroethylene (PTFE)	BNC	4 GHz	Crimp
Radiall USA, Inc. R141072000W	Nickel	Male Pin Plug	Silver	Crimp	500 V	Brass	Brass	1	50 Ohms	500	Gold	Free Hanging (In-Line)	Bayonet Lock	141	RG-58	-65 ░C	165 °C	Polytetrafluoroethylene (PTFE)	BNC	4 GHz	Crimp
Radiall USA, Inc. R141075161	Nickel	Male Pin Plug	Silver	Crimp	335 V	Brass	Brass	1	50 Ohms	500	Gold	Free Hanging (In-Line)	Bayonet Lock		316 RG-174	-35 °C	70 °C	Polytetrafluoroethylene (PTFE)	BNC	1.5 GHz	Crimp

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

BNC Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Crimp
