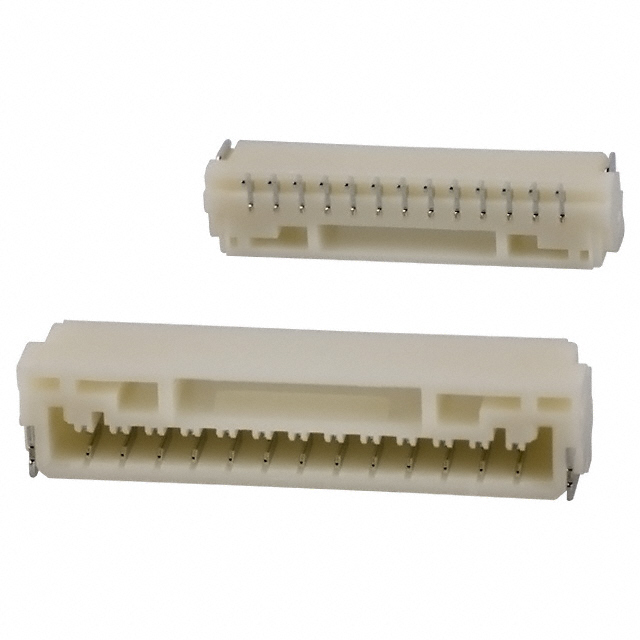

SM13B-GHS-TB

Active

JST Sales America Inc.

CONN HEADER SMD R/A 13POS 1.25MM

Search across all available documentation for this part.

Active

JST Sales America Inc.

CONN HEADER SMD R/A 13POS 1.25MM

Technical Specifications

Parameters and characteristics for this part

Specification	SM13B-GHS-TB

Connector Type	Header
Contact Finish - Post	Tin
Contact Material	Phosphor Bronze
Contact Shape	Rectangular
Contact Type	Outer Shroud Contact
Fastening Type	Locking Ramp
Features	Solder Retention
Insulation Color	Natural
Insulation Height	0.167 in
Insulation Height	4.25 mm
Insulation Material	Polyamide (PA9T), Nylon 9T
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount, Right Angle
Number of Positions	13
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Pitch - Mating	1.25 mm
Pitch - Mating	0.049 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	50 V

Part	Voltage Rating	Number of Rows	Shrouding	Insulation Height	Insulation Height	Insulation Material	Contact Finish - Post	Contact Shape	Contact Type	Number of Positions Loaded	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Connector Type	Insulation Color	Fastening Type	Mounting Type	Material Flammability Rating	Termination	Number of Positions	Style	Pitch - Mating	Pitch - Mating	Features
JST Sales America Inc. SM13B-GHS-TB	50 V	1	Shrouded - 4 Wall	0.167 in	4.25 mm	Nylon 9T Polyamide (PA9T)	Tin	Rectangular	Outer Shroud Contact	All	-25 °C	85 °C	Phosphor Bronze	Header	Natural	Locking Ramp	Surface Mount Right Angle	UL94 V-0	Solder	13	Board to Cable/Wire	1.25 mm	0.049 in	Solder Retention

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	2500	$ 0.36

General part information

Connector Header Surface Mount, Right Angle 13 position 0.049" (1.25mm)
