Technical Specifications
Parameters and characteristics for this part

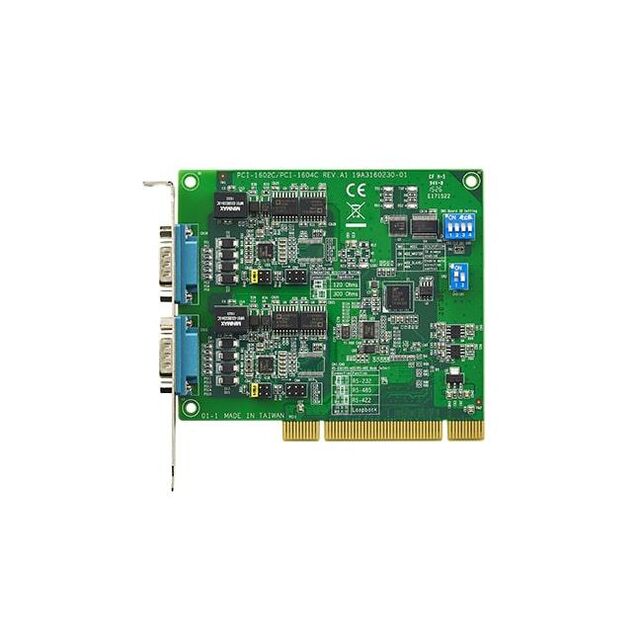

| Specification | PCI-1602C-AE |
|---|---|
| Expansion Site/Bus | PCI |
| Function | Communication Card |
| Interface | PCI Express |
| Number of Ports | 2 |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -10 °C |
| RS-232 (422, 485) | 2 |
| Size / Dimension [x] | 119.9 mm |
| Size / Dimension [x] | 4.72 in |
| Size / Dimension [y] | 4.2 " |
| Size / Dimension [y] | 106.7 mm |
| Type | RS-422, RS-485, RS-232 |
| Watchdog Timer | False |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 200.00 | |
| Retail Package | 1 | $ 260.00 | ||
Description
General part information
PCI-1602 Series
2 PORT RS232/422/485 PCI ISOLATI
