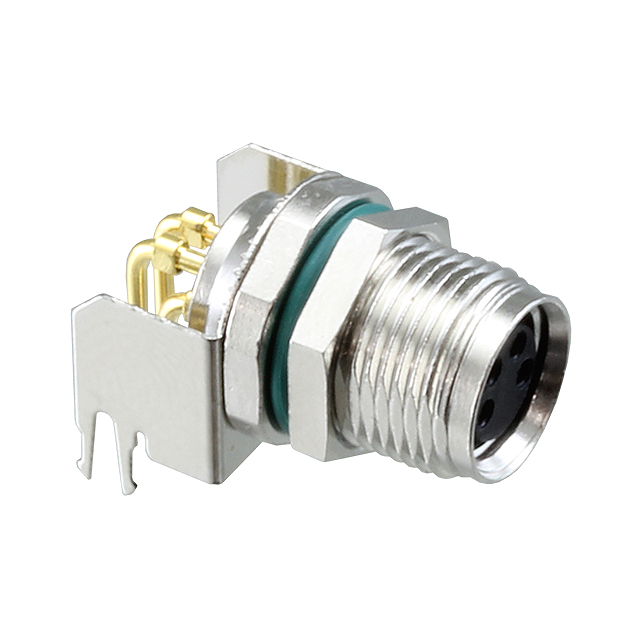

M8S-04PFFR-SF8001

Active

Amphenol LTW

CONN RCPT FMALE 4POS GOLD SOLDER

Search across all available documentation for this part.

Active

Amphenol LTW

CONN RCPT FMALE 4POS GOLD SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	M8S-04PFFR-SF8001

Color	Silver
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	4 A
Features	Ground, Board Lock
Ingress Protection	IP68 - Dust Tight, Waterproof
Insert Material	Polyamide (PA), Nylon, Glass Filled
Mounting Feature	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Right Angle, Panel Mount
Number of Positions	4
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Metal
Shell Size - Insert	M8-4
Shielding	Shielded
Termination	Solder
Voltage Rating	30 VAC

Part	Features	Connector Type	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Ingress Protection	Color	Shell Finish	Contact Material	Contact Finish - Mating	Mounting Feature	Primary Material	Termination	Shell Size - Insert	Insert Material	Number of Positions	Voltage Rating	Shielding	Shell Material	Mounting Type
Amphenol LTW M8S-04PFFR-SF8001	Board Lock Ground	Receptacle Female Sockets	4 A	-40 °C	105 ░C	IP68 - Dust Tight Waterproof	Silver	Nickel	Copper Alloy	Gold	Bulkhead - Front Side Nut	Metal	Solder	M8-4	Polyamide (PA) Nylon Glass Filled	4	30 VAC	Shielded	Metal	Panel Mount Right Angle Through Hole

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Position Circular Connector Receptacle, Female Sockets Solder
