1-145167-2

Active

TE Connectivity Raychem Cable Protection

CONN PCI CARDEDGE FML 120P 0.050

Search across all available documentation for this part.

Active

TE Connectivity Raychem Cable Protection

CONN PCI CARDEDGE FML 120P 0.050

Technical Specifications

Parameters and characteristics for this part

Specification	1-145167-2

Card Thickness	0.062 in
Card Thickness	1.57 mm
Card Type	PCI™
Color	Natural
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Phosphor Bronze
Gender	Female
Material - Insulation	Thermoplastic
Mounting Type	Through Hole
Number of Positions	120
Number of Positions/Bay/Row [custom]	11
Number of Positions/Bay/Row [custom]	49
Number of Rows	2
Pitch [x]	0.05 in
Pitch [x]	1.27 mm
Read Out	Dual
Termination	Solder, Staggered

Part	Mounting Type	Contact Finish Thickness	Contact Finish Thickness	Contact Material	Gender	Material - Insulation	Contact Finish	Color	Read Out	Number of Positions/Bay/Row [custom]	Number of Positions/Bay/Row [custom]	Number of Positions	Card Thickness	Card Thickness	Termination	Pitch [x]	Pitch [x]	Card Type	Number of Rows
TE Connectivity Raychem Cable Protection 1-145167-2	Through Hole	0.76 Ám	30 Áin	Phosphor Bronze	Female	Thermoplastic	Gold	Natural	Dual	11	49	120	0.062 in	1.57 mm	Solder Staggered	0.05 in	1.27 mm	PCI™	2

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

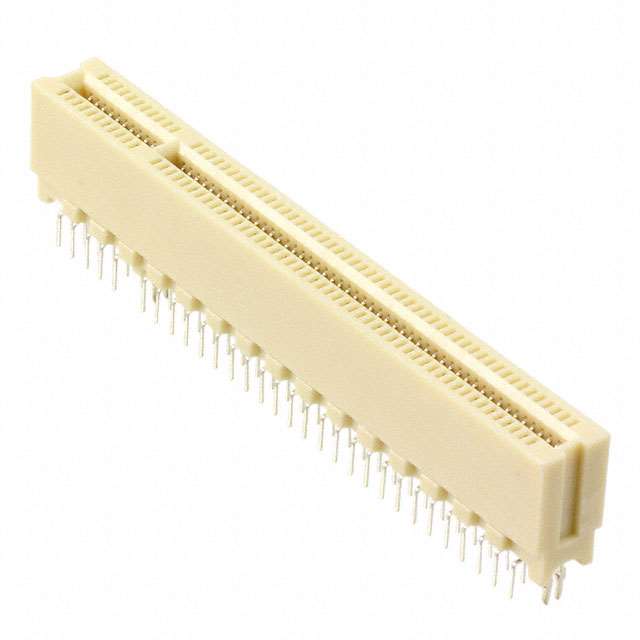

120 Position Female Connector PCI™ Gold 0.050" (1.27mm) Natural

Technical documentation and resources

No documents available
