02-901.2
ActiveEAO

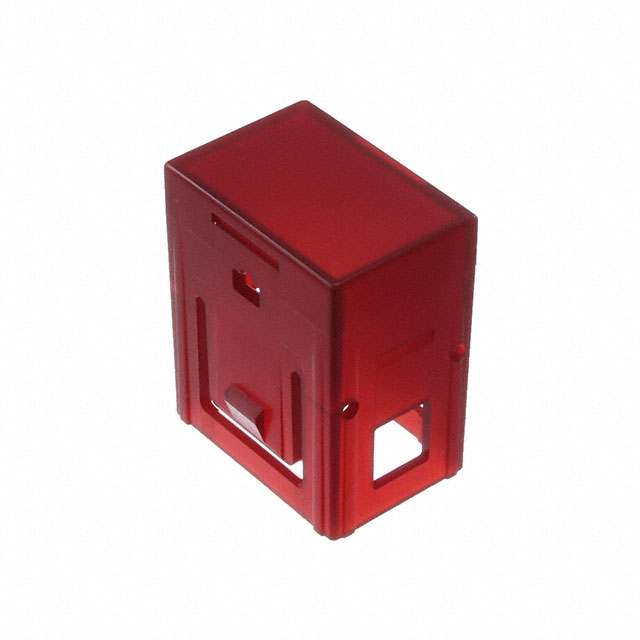

CAP PUSHBUTTON RECTANGLE RED
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
02-901.2
ActiveEAO
CAP PUSHBUTTON RECTANGLE RED
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 02-901.2 | 02-901 Series |
|---|---|---|
| Color | Red | Red, Blue, Clear, White, Black, Smoke |
| For Use With/Related Products | 02 Series | 02 Series |
| Illumination | Illuminated | Illuminated, Non-Illuminated |
| Mounting Type | Snap Fit | Snap Fit |
| Shape | Rectangular | Rectangular |
| Size [x] | 17.5 mm | 17.5 mm |
| Size [y] | 1 " | 1 " |
| Switch Type | Pushbutton | Pushbutton |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 5.24 | |
| 10 | $ 4.68 | |||
| 25 | $ 4.43 | |||
| 50 | $ 4.27 | |||
| 100 | $ 4.06 | |||
| 250 | $ 3.88 | |||
| 500 | $ 3.54 | |||
| 1000 | $ 3.36 | |||
02-901 Series
CAP PUSHBUTTON RECTANGLE RED
| Part | Illumination | Size [y] | Size [x] | Shape | Mounting Type | Switch Type | Color | For Use With/Related Products |
|---|---|---|---|---|---|---|---|---|
EAO 02-901.2 | Illuminated | 1 " | 17.5 mm | Rectangular | Snap Fit | Pushbutton | Red | 02 Series |
EAO 02-901.6 | Illuminated | 1 " | 17.5 mm | Rectangular | Snap Fit | Pushbutton | Blue | 02 Series |
EAO 02-901.7 | Illuminated | 1 " | 17.5 mm | Rectangular | Snap Fit | Pushbutton | Clear | 02 Series |
EAO 02-901.9 | Illuminated | 1 " | 17.5 mm | Rectangular | Snap Fit | Pushbutton | White | 02 Series |
EAO 02-901.0 | Non-Illuminated | 1 " | 17.5 mm | Rectangular | Snap Fit | Pushbutton | Black | 02 Series |
EAO 02-901.1 | Illuminated | 1 " | 17.5 mm | Rectangular | Snap Fit | Pushbutton | Smoke | 02 Series |
Description
General part information
02-901 Series
Rectangular Pushbutton Switch Cap Red Snap Fit
