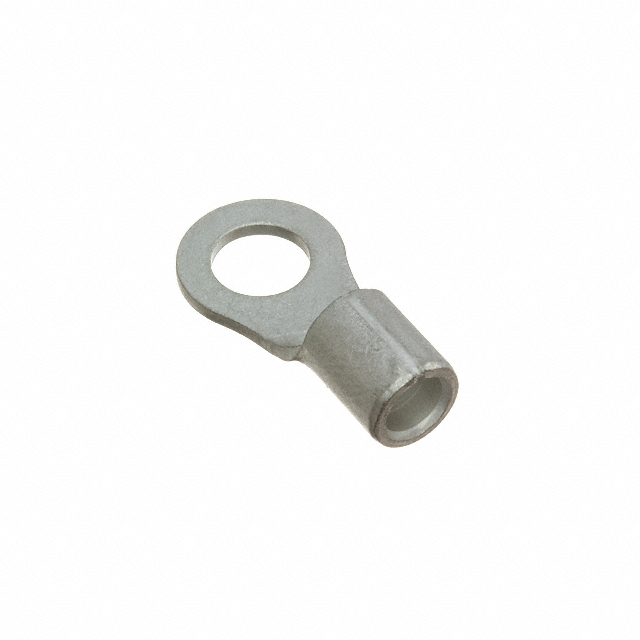

R5.5-5
ActiveJST Sales America Inc.
CONN RING CIRC 10-12AWG #10
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | R5.5-5 |
|---|---|
| Features | Brazed Seam |
| Insulation | Non-Insulated |
| Length - Overall [x] | 0.78 in |
| Length - Overall [x] | 19.81 mm |
| Mounting Type | Free Hanging (In-Line) |
| Stud/Tab Size | 10 Stud |
| Terminal Type | Circular |
| Termination | Crimp |
| Thickness | 0.99 mm |
| Thickness | 0.039 in |
| Width - Outer Edges [y] | 9.5 mm |
| Width - Outer Edges [y] | 0.374 in |
| Wire Gauge [Max] | 12 AWG |
| Wire Gauge [Min] | 10 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.16 | |
| 10 | $ 0.12 | |||
| 25 | $ 0.11 | |||
| 50 | $ 0.10 | |||
| 100 | $ 0.09 | |||
| 250 | $ 0.08 | |||
| 500 | $ 0.08 | |||
| 1000 | $ 0.07 | |||
| 2500 | $ 0.06 | |||
Description
General part information
R5.5 Series
Ring Terminal Connector 10 Stud Circular 10-12 AWG Crimp
Documents
Technical documentation and resources
