RB85P12B24B

Active

Serpac

BOX PLASTIC BLACK

Search across all available documentation for this part.

Active

Serpac

BOX PLASTIC BLACK

Technical Specifications

Parameters and characteristics for this part

Specification	RB85P12B24B

Area (L x W)	37.1 in²
Area (L x W)	239 cm²
Color	Black
Container Type	Box
Design	Cover Included
Height [z]	3.54 in
Height [z]	89.92 mm
Material	Plastic, Polycarbonate
Material Flammability Rating	UL94 V-0
Ratings	IP67, NEMA 4
Thickness	0.12 in
Thickness	3.05 mm

Part	Color	Material	Area (L x W)	Area (L x W)	Thickness	Thickness	Container Type	Material Flammability Rating	Height [z]	Height [z]	Design	Ratings
Serpac RB85P12B24B	Black	Plastic Polycarbonate	37.1 in²	239 cm²	0.12 in	3.05 mm	Box	UL94 V-0	3.54 in	89.92 mm	Cover Included	IP67 NEMA 4

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

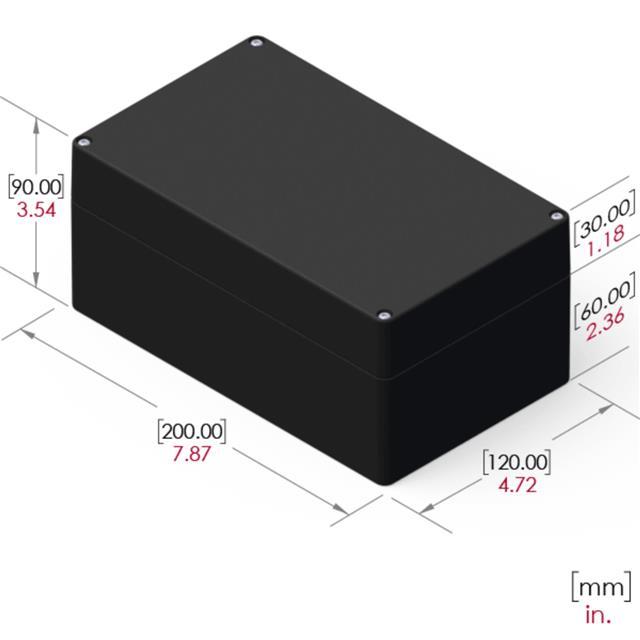

Box Plastic, Polycarbonate Black Cover Included X 3.540" (89.92mm)
