9438 0101000

Active

Belden Inc.

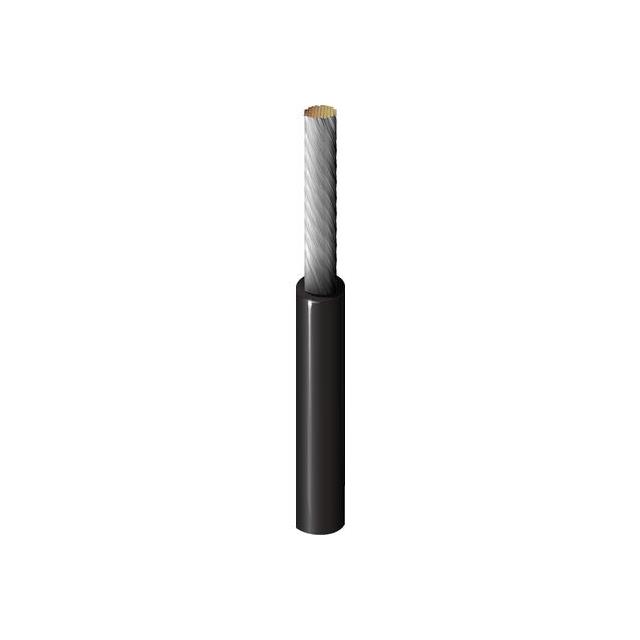

HOOK-UP STRND 14AWG BLACK

Search across all available documentation for this part.

Active

Belden Inc.

HOOK-UP STRND 14AWG BLACK

Technical Specifications

Parameters and characteristics for this part

Specification	9438 0101000

Cable Type	Hook-Up
Conductor Material	Copper, Tinned
Conductor Strand [custom]	104
Conductor Strand [custom]	34 AWG
Jacket (Insulation) Material	High Density Polyethylene (HDPE)
Jacket (Insulation) Thickness	0.81 mm
Jacket (Insulation) Thickness	0.032 in
Jacket Color	Black
Length	1000 ft
Length	304.8 m
Wire Gauge	13.5 AWG

Part	Cable Type	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Conductor Strand [custom]	Conductor Strand [custom]	Length	Length	Conductor Material	Jacket (Insulation) Material	Jacket Color	Wire Gauge
Belden Inc. 9438 0101000	Hook-Up	0.81 mm	0.032 in	104	34 AWG	1000 ft	304.8 m	Copper Tinned	High Density Polyethylene (HDPE)	Black	13.5 AWG

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 2.56

General part information

14 AWG Hook-Up Wire 104/34 Black 1000.0' (304.8m)
