D3MBAU

Active

Switchcraft Inc.

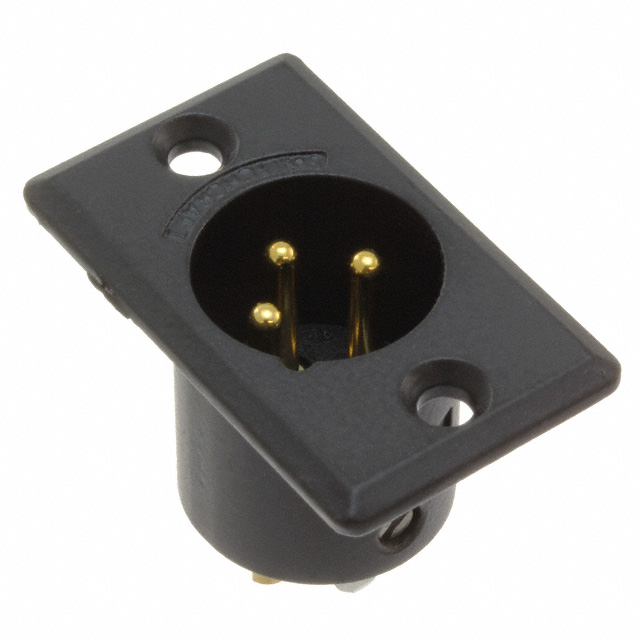

CONN RCPT MALE XLR 3P SOLDER CUP

Search across all available documentation for this part.

Active

Switchcraft Inc.

CONN RCPT MALE XLR 3P SOLDER CUP

Technical Specifications

Parameters and characteristics commom to parts in this series

CONN RCPT MALE XLR 3P SOLDER CUP

Part	Connector Type	Fastening Type	Shell Material	Contact Finish - Mating	Insert Material	Primary Material	Applications	Shell Finish	Orientation	Features	Contact Material	Color	Voltage Rating	Shell Size - Insert	Current Rating (Amps)	Mounting Feature
Switchcraft Inc. D3MBAU	Male Pins, Receptacle	Latch Lock	Zinc	Gold	Polyester	Metal	Audio, Instrumentation	Black	Keyed	Ground	Brass	Black	125 VAC	XLR	15 A	Flange
Switchcraft Inc. D3MB	Male Pins, Receptacle	Latch Lock	Zinc	Silver	Polyester	Metal	Audio, Instrumentation	Black	Keyed	Ground	Brass	Black	125 VAC	XLR	15 A	Flange

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 19.01

General part information

3 Position Circular Connector Receptacle, Male Pins Solder Cup
