103951-4
ActiveTE Connectivity AMP Connectors

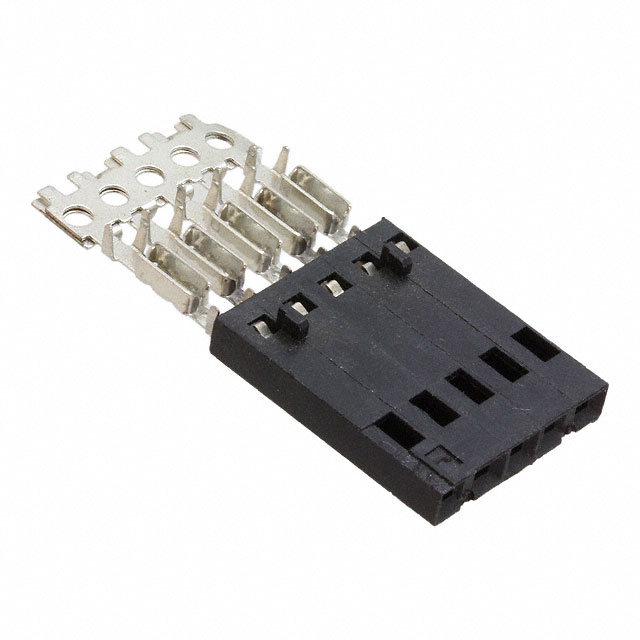

CONN PLUG 5POS IDC 22-26AWG GOLD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
103951-4
ActiveTE Connectivity AMP Connectors
CONN PLUG 5POS IDC 22-26AWG GOLD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 103951-4 |
|---|---|
| Cable Termination | IDC |
| Color | Black |
| Connector Type | Plug |
| Contact Finish | Gold |
| Contact Finish Thickness | 15 µin |
| Contact Finish Thickness | 0.38 µm |
| Contact Type | Male Pin |
| Features | Closed End |
| Mounting Type | Free Hanging (In-Line) |
| Number of Rows | 1 |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Wire Gauge [Max] | 26 AWG |
| Wire Gauge [Min] | 22 AWG |
| Wire Type | Ribbon Cable |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 924 | $ 4.66 | |
103951 Series
CONN PLUG 5POS IDC 22-26AWG GOLD
| Part | Mounting Type | Wire Gauge [Min] | Wire Gauge [Max] | Contact Finish | Contact Type | Cable Termination | Contact Finish Thickness | Contact Finish Thickness | Pitch [x] | Pitch [x] | Features | Color | Number of Rows | Connector Type | Wire Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 103951-4 | Free Hanging (In-Line) | 22 AWG | 26 AWG | Gold | Male Pin | IDC | 15 µin | 0.38 µm | 2.54 mm | 0.1 in | Closed End | Black | 1 | Plug | Ribbon Cable |
Description
General part information
103951 Series
5 Position Rectangular Plug Connector IDC Gold 22-26 AWG
