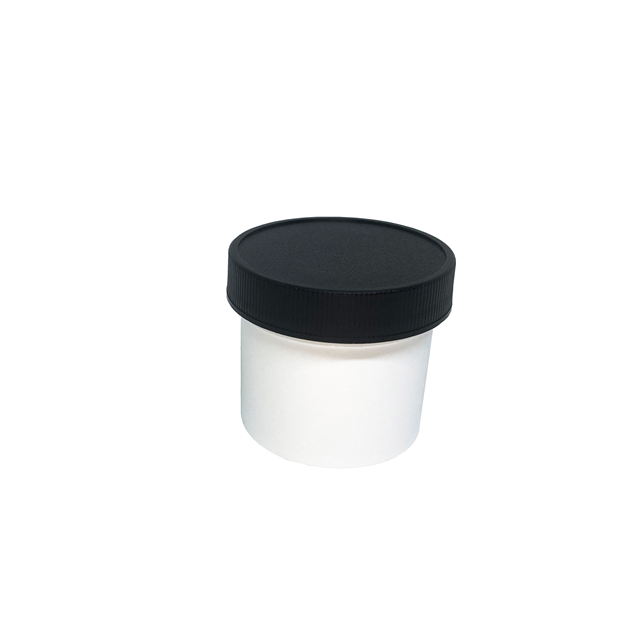

TG-NSP35LV-4OZ

Active

t-Global Technology

NON-SILICONE THERMAL PUTTY 4OZ L

Search across all available documentation for this part.

Active

t-Global Technology

NON-SILICONE THERMAL PUTTY 4OZ L

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Thermal Non-Silicone Putty 4 oz Tube

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	TG-NSP35LV-4OZ	TG-NSP35 Series

Color	Gray	Gray
Material Flammability Rating	-	UL94 V-0
Shelf Life	60 Months	60 Months
Shelf Life Start	-	Date of Manufacture
Size / Dimension	4 oz Tube	4 oz Tube, 30cc Cartridge, 5 lb Can
Size / Dimension	-	1 - 20 lb
Thermal Conductivity	3.5 W/m-K	3.5 W/m-K
Type	Non-Silicone Putty	Non-Silicone Putty
Usable Temperature Range [Max]	200 °C	200 °C
Usable Temperature Range [Max]	200 °C	200 °C
Usable Temperature Range [Min]	-40 °F	-40 °F
Usable Temperature Range [Min]	-40 °C	-40 °C

NON-SILICONE THERMAL PUTTY 1LB L

Part	Thermal Conductivity	Color	Type	Shelf Life	Size / Dimension	Usable Temperature Range [Max]	Usable Temperature Range [Max]	Usable Temperature Range [Min]	Usable Temperature Range [Min]	Size / Dimension	Shelf Life Start	Material Flammability Rating
t-Global Technology TG-NSP35LV-1LB	3.5 W/m-K	Gray	Non-Silicone Putty	60 Months	1 lb	200 °C	200 °C	-40 °F	-40 °C
t-Global Technology TG-NSP35LV-4OZ	3.5 W/m-K	Gray	Non-Silicone Putty	60 Months		200 °C	200 °C	-40 °F	-40 °C	4 oz Tube
t-Global Technology TG-NSP35-30CC	3.5 W/m-K	Gray	Non-Silicone Putty	60 Months		200 °C	200 °C	-40 °F	-40 °C	30cc Cartridge	Date of Manufacture	UL94 V-0
t-Global Technology TG-NSP35LV-30CC	3.5 W/m-K	Gray	Non-Silicone Putty	60 Months		200 °C	200 °C	-40 °F	-40 °C	30cc Cartridge
t-Global Technology TG-NSP35-4OZ	3.5 W/m-K	Gray	Non-Silicone Putty	60 Months		200 °C	200 °C	-40 °F	-40 °C	4 oz Tube
t-Global Technology TG-NSP35-1LB	3.5 W/m-K	Gray	Non-Silicone Putty	60 Months	1 lb	200 °C	200 °C	-40 °F	-40 °C
t-Global Technology TG-NSP35-5LB	3.5 W/m-K	Gray	Non-Silicone Putty	60 Months		200 °C	200 °C	-40 °F	-40 °C	5 lb Can
t-Global Technology TG-NSP35-20LB	3.5 W/m-K	Gray	Non-Silicone Putty	60 Months	20 lb	200 °C	200 °C	-40 °F	-40 °C
