82-6561.1000

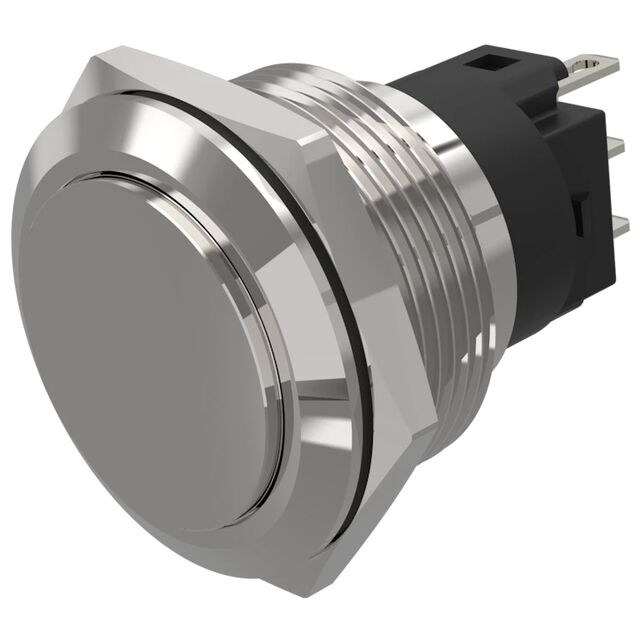

ActiveVANDAL RESISTANT SWITCH, 82 SERIES, 22 MM, SPDT, MOMENTARY, ROUND FLUSH RAISED FLAT, NATURAL
Deep-Dive with AI
Search across all available documentation for this part.
82-6561.1000
ActiveVANDAL RESISTANT SWITCH, 82 SERIES, 22 MM, SPDT, MOMENTARY, ROUND FLUSH RAISED FLAT, NATURAL
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 82-6561.1000 | 82-6561 Series |
|---|---|---|
| - | - | |
| Actuator Marking | No Marking | No Marking |
| Actuator Type | Flush, Button, Round | Flush, Button, Round |
| Circuit | SPDT | SPDT |
| Color - Actuator/Cap | Silver | Silver |
| Current Rating (Amps) | 3 A | 3 A |
| Electrical Life | 50000 Cycles | 50000 Cycles |
| Ingress Protection | IP67, IP65 | IP67, IP65 |
| Mechanical Life | 1000000 Cycles | 1000000 Cycles |
| Mounting Type | Panel Mount, Front | Panel Mount, Front |
| Operating Temperature [Max] | 70 °C | 70 °C |
| Operating Temperature [Min] | -30 ░C | -30 ░C |
| Panel Cutout Dimensions [diameter] | 22.3 mm | 22.3 mm |
| Switch Function | On-Mom | On-Mom |
| Termination Style | 0.11 in | 0.11 in |
| Termination Style | Quick Connect, Solder | Quick Connect, Solder |
| Termination Style | 2.8 mm | 2.8 mm |
| Type | Standard | Standard |
| Voltage Rating - AC | 240 V | 240 V |
| Voltage Rating - DC | 240 V | 240 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
82-6561 Series
VANDAL RESISTANT SWITCH, 82 SERIES, 22 MM, SPDT, MOMENTARY, ROUND FLUSH RAISED FLAT, NATURAL
| Part | Voltage Rating - AC | Mounting Type | Switch Function | Color - Actuator/Cap | Voltage Rating - DC | Panel Cutout Dimensions [diameter] | Type | Ingress Protection | Circuit | Actuator Type | Mechanical Life | Termination Style | Termination Style | Termination Style | Electrical Life | Current Rating (Amps) | Operating Temperature [Max] | Operating Temperature [Min] | Actuator Marking |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EAO 82-6561.1000 | 240 V | Panel Mount, Front | On-Mom | Silver | 240 V | 22.3 mm | Standard | IP65, IP67 | SPDT | Button, Flush, Round | 1000000 Cycles | 0.11 in | Quick Connect, Solder | 2.8 mm | 50000 Cycles | 3 A | 70 °C | -30 ░C | No Marking |
EAO 82-6561.1000 |
Description
General part information
82-6561 Series
82-6561.1000 is an 82 series optimal pushbutton for vandal-resistant, stylish HMI controls used in harsh industrial environments, public areas and access control. This series is resistant to vandalism and sealed for use in harsh environments. This innovatively designed switch series is protected according to IK10 impact resistance and IP65/IP67 sealing requirements, which makes it ideally suited for exposed public use and industrial applications. It is ideal for ticketing and vending machines, machinery and factory equipment, food and beverage, elevators and people movers, access control and security systems, audio and video equipment, medical equipment, heavy duty and special vehicles buses and coaches and marine applications. It is approved by CE, CB, UL, C UL, CCC.
