UM62009LSET

Active

Bopla Enclosures

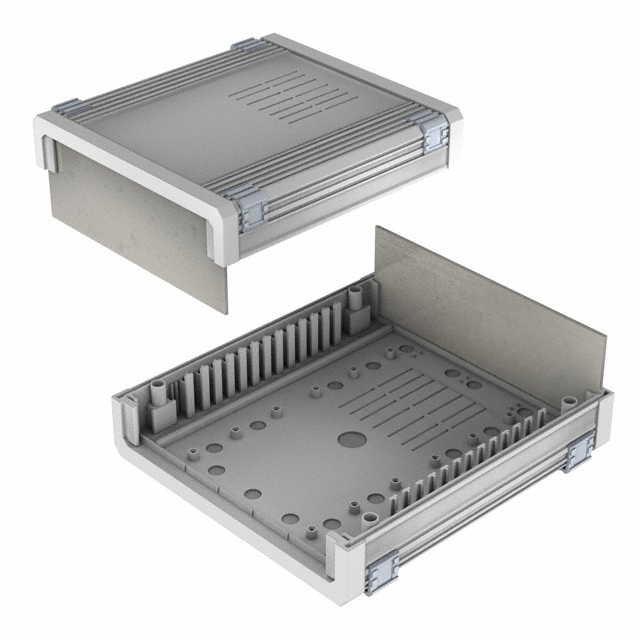

BOX ABS GRAY 11.45"L X 7.83"W

Search across all available documentation for this part.

Active

Bopla Enclosures

BOX ABS GRAY 11.45"L X 7.83"W

Technical Specifications

Parameters and characteristics for this part

Specification	UM62009LSET

Area (L x W)	89.7 in²
Area (L x W)	579 cm²
Color	Gray
Container Type	Box
Design	Split Sides and End Panel(s)
Features	Vented Panels
Height [z]	2.449 in
Height [z]	62.2 mm
Material	Plastic, ABS
Material Flammability Rating	UL94 HB
Ratings	IP30
Size / Dimension [x]	290.9 mm
Size / Dimension [x]	11.453 in
Size / Dimension [y]	7.831 in
Size / Dimension [y]	198.9 mm
Thickness	0.138 in
Thickness	3.5 mm
Weight	1.4 lbs
Weight	635 g

BOX ABS GRAY 11.45"L X 7.83"W

Part	Ratings	Thickness	Thickness	Height [z]	Height [z]	Weight	Weight	Material	Features	Color	Material Flammability Rating	Container Type	Design	Area (L x W)	Area (L x W)	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]
Bopla Enclosures UM62009LSET	IP30	0.138 in	3.5 mm	2.449 in	62.2 mm	1.4 lbs	635 g	Plastic, ABS	Vented Panels	Gray	UL94 HB	Box	Split Sides and End Panel(s)	89.7 in²	579 cm²	7.831 in	198.9 mm	290.9 mm	11.453 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Box Plastic, ABS Gray Split Sides and End Panel(s) 11.453" L x 7.831" W (290.90mm x 198.90mm) X 2.449" (62.20mm)

Technical documentation and resources

No documents available
