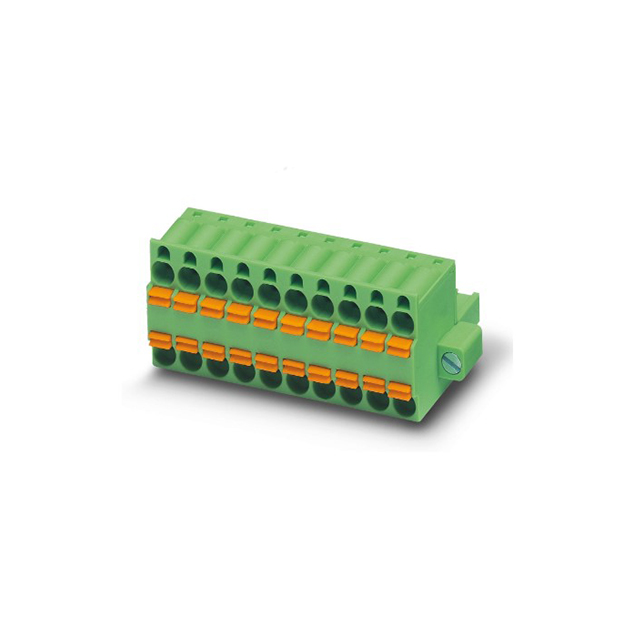

Pluggable Terminal Blocks TFKC 2,5/ 2-ST- 5,08 BD:1-4Q
Technical documentation and resources
Parameters and characteristics commom to parts in this series
| Specification | 1808433 | TFKC Series |
|---|---|---|
| Color | Black | Green, Black |
| Contact Material | Copper Alloy | Copper Alloy |
| Contact Mating Finish | Tin | Tin |
| Current - IEC | 12 A | 12 A |
| Current - UL | 10 A | 10 A |
| Features | Push Button Actuated, Mating Flange | Push Button Actuated, Mating Flange |
| Housing Material | Polyamide (PA), Nylon | Polyamide (PA), Nylon |
| Insulation Height | 0.87 in | 0.87 in |
| Insulation Height | 22.1 mm | 22.1 mm |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Number of Levels | 1 | 1 |
| Number of Levels | - | 1 (Mate), 2 (Input) |
| Operating Temperature [Max] | 100 °C | 100 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Pitch [x] | 0.2 in | 0.2 in |
| Pitch [x] | 5.08 mm | 5.08 mm |
| Positions Per Level | 3 | 3 |
| Positions Per Level | - | 5 |
| Positions Per Level | - | 10 |
| Termination Style | Push-In Spring, Screwless - Leg Spring | Screwless - Push-In Spring, Push-In Spring, Screwless - Leg Spring |
| Type | Plug, Female Sockets | Plug, Female Sockets |
| Voltage - IEC | 320 V | 320 - 630 V |
| Voltage - UL | 300 V | 300 V |
| Wire Gauge or Range - AWG [Max] | 26 AWG | 26 AWG |
| Wire Gauge or Range - AWG [Min] | 12 AWG | 12 AWG |
| Wire Gauge or Range - mm² [Max] | 1.5 mm² | 1.5 - 2.5 mm² |
| Wire Gauge or Range - mm² [Min] | 0.2 mm² | 0.2 mm² |
| Wire Strip Length | 10 mm | 10 mm |
Pluggable Terminal Blocks TFKC 2,5/ 2-ST- 5,08 BD:1-4Q
| Part | Current - IEC | Housing Material | Wire Gauge or Range - mm² [Min] | Wire Gauge or Range - mm² [Max] | Wire Strip Length | Pitch [x] | Pitch [x] | Material Flammability Rating | Contact Mating Finish | Color | Number of Levels | Type | Voltage - IEC | Positions Per Level [custom] | Positions Per Level [custom] | Insulation Height | Insulation Height | Termination Style | Wire Gauge or Range - AWG [Min] | Wire Gauge or Range - AWG [Max] | Mounting Type | Current - UL | Voltage - UL | Positions Per Level | Operating Temperature [Max] | Operating Temperature [Min] | Number of Levels | Features | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Phoenix Contact 1962639 | 12 A | Polyamide (PA), Nylon | 0.2 mm² | 2.5 mm² | 10 mm | 0.2 in | 5.08 mm | UL94 V-0 | Tin | Green | 1 (Mate), 2 (Input) | Plug, Female Sockets | 630 V | 5 | 10 | 0.87 in | 22.1 mm | Screwless - Push-In Spring | 12 AWG | 26 AWG | Free Hanging (In-Line) | 10 A | 300 V | ||||||
Phoenix Contact 1808433 | 12 A | Polyamide (PA), Nylon | 0.2 mm² | 1.5 mm² | 10 mm | 0.2 in | 5.08 mm | UL94 V-0 | Tin | Black | Plug, Female Sockets | 320 V | 0.87 in | 22.1 mm | Push-In Spring, Screwless - Leg Spring | 12 AWG | 26 AWG | Free Hanging (In-Line) | 10 A | 300 V | 3 | 100 °C | -40 °C | 1 | Mating Flange, Push Button Actuated | Copper Alloy |
