30806 009100

Active

Belden Inc.

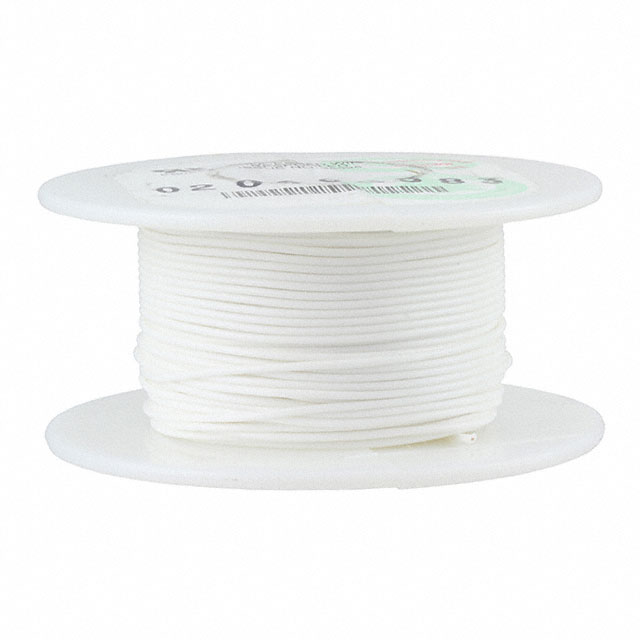

HOOK-UP STRND 6AWG WHITE

Search across all available documentation for this part.

Active

Belden Inc.

HOOK-UP STRND 6AWG WHITE

Technical Specifications

Parameters and characteristics for this part

Specification	30806 009100

Cable Type	Hook-Up
Conductor Material	Copper, Tinned
Conductor Strand [custom]	25 AWG
Conductor Strand [custom]	84
Jacket (Insulation) Diameter [diameter]	0.368 in
Jacket (Insulation) Diameter [diameter]	9.35 mm
Jacket (Insulation) Material	Glass, Silicone
Jacket (Insulation) Thickness	1.6 mm
Jacket (Insulation) Thickness	0.063 in
Length [x]	30.5 m
Length [x]	100 ft
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-70 °C
Ratings	UL Style 3126
Voltage	600 V
Wire Gauge	6 AWG

Part	Ratings	Cable Type	Conductor Strand [custom]	Conductor Strand [custom]	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Voltage	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Operating Temperature [Max]	Operating Temperature [Min]	Wire Gauge	Conductor Material	Jacket Color	Length [x]	Length [x]	Jacket (Insulation) Material
Belden Inc. 30806 0102000	UL Style 3126	Hook-Up	25 AWG	84	1.6 mm	0.063 in	600 V	0.368 in	9.35 mm	200 °C	-70 °C	6 AWG	Copper Tinned	Black	609.6 m	2000 ft	Glass Silicone
Belden Inc. 30806 009500	UL Style 3126	Hook-Up	25 AWG	84	1.6 mm	0.063 in	600 V	0.368 in	9.35 mm	200 °C	-70 °C	6 AWG	Copper Tinned		152.4 m	500 '	Glass Silicone
Belden Inc. 30806 009100	UL Style 3126	Hook-Up	25 AWG	84	1.6 mm	0.063 in	600 V	0.368 in	9.35 mm	200 °C	-70 °C	6 AWG	Copper Tinned		30.5 m	100 ft	Glass Silicone

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	100	$ 9.04

General part information

6 AWG Hook-Up Wire 84/25 White 600V 100.0' (30.5m)
