SSL015PC2DC012

Active

TE Connectivity Aerospace, Defense and Marine

CONN PLUG 15POS 30AWG 12IN

Search across all available documentation for this part.

Active

TE Connectivity Aerospace, Defense and Marine

CONN PLUG 15POS 30AWG 12IN

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	20	$ 181.69

General part information

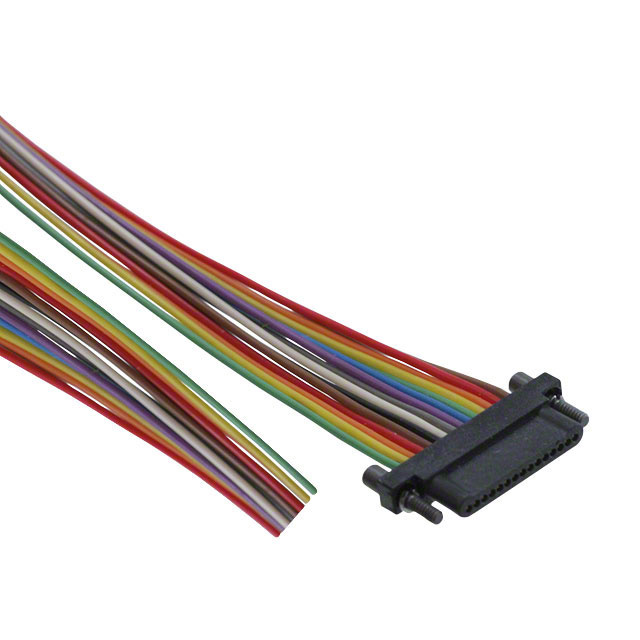

15 Position Cable Assembly Rectangular Plug to Individual Wire Leads 1.00' (304.80mm)

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	SSL015PC2DC012	SSL015 Series

Cable Termination	Crimp	Crimp
Color	Multiple, Individual	Multiple, Individual
Connector Style	-	D-Type, Nano-D
Connector Type	Plug to Individual Wire Leads	Female Sockets, Plug, Plug to Individual Wire Leads, Male Pins
Contact Finish	-	Nickel
Contact Material	-	Beryllium Copper
Contact Type	-	Signal
Dielectric Material	-	Liquid Crystal Polymer (LCP)
Flange Feature	-	Female Screwlock, Mating Side
Length	1 ft	1 ft
Length	304.8 mm	304.8 mm
Length	-	457.2 - 609.6 mm
Length	-	1.5 - 2 ft
Mounting Type	-	Free Hanging (In-Line)
Number of Positions	15	15
Number of Rows	1	1
Shielding	Unshielded	Unshielded
Termination	-	Wire Leads
Wire Gauge	-	30 AWG

CONN D-TYPE PLUG 15POS

Part	Dielectric Material	Contact Type	Termination	Flange Feature	Number of Positions	Connector Type	Wire Gauge	Number of Rows	Mounting Type	Contact Finish	Connector Style	Contact Material	Color	Length [x]	Length [x]	Shielding	Cable Termination	Length	Length
TE Connectivity Aerospace, Defense and Marine SSL015SC2DC006N	Liquid Crystal Polymer (LCP)	Signal	Wire Leads	Female Screwlock, Mating Side	15	Female Sockets, Plug	30 AWG	1	Free Hanging (In-Line)	Nickel	D-Type, Nano-D	Beryllium Copper
TE Connectivity Aerospace, Defense and Marine SSL015PC2DC018					15	Plug to Individual Wire Leads		1					Individual, Multiple	457.2 mm	1.5 ft	Unshielded	Crimp
TE Connectivity Aerospace, Defense and Marine SSL01511500PCM	Liquid Crystal Polymer (LCP)	Signal			15	Male Pins, Plug	30 AWG	1	Free Hanging (In-Line)		D-Type, Nano-D
TE Connectivity Aerospace, Defense and Marine SSL015PC2DC024					15	Plug to Individual Wire Leads		1					Individual, Multiple	609.6 mm	2 '	Unshielded	Crimp
TE Connectivity Aerospace, Defense and Marine SSL015PC2DC012					15	Plug to Individual Wire Leads		1					Individual, Multiple			Unshielded	Crimp	1 ft	304.8 mm
