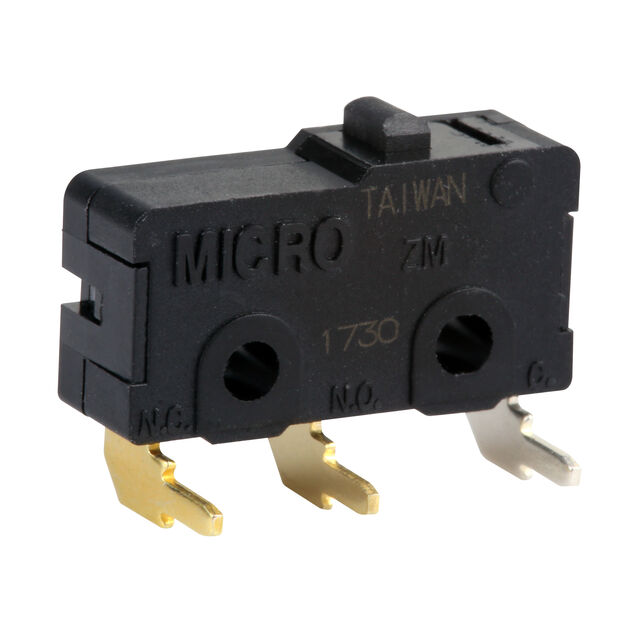

ZM10E50A01

Active

Honeywell Sensing and Productivity Solutions

SWITCH SNAP ACT SPDT 100MA 125V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsZ Series Install Instr Datasheet

ZM10E50A01

Active

Honeywell Sensing and Productivity Solutions

SWITCH SNAP ACT SPDT 100MA 125V

Deep-Dive with AI

DocumentsZ Series Install Instr Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	ZM10E50A01	ZM10E Series

Actuator Type	Round (Pin Plunger)	Simulated Roller, Lever, Lever, Straight, Roller, Round (Pin Plunger)
Circuit	SPDT	SPDT, SPST-NO
Current Rating (Amps)	100 mA	100 mA
Differential Travel	0.008 in	0.008 - 0.032 in
Differential Travel	0.2 mm	0.2 - 0.81 mm
Electrical Life	10000 Cycles	10000 Cycles
Features	-	Actuator Mounted Left Side
Ingress Protection	-	IP40
Mechanical Life	10000000 Cycles	1000000 - 10000000 Cycles
Mounting Type	Through Hole, Right Angle	Through Hole, Right Angle, Chassis Mount, Through Hole
Operating Force	146 gf	33 - 146 gf
Operating Position	0.449 in	0.449 - 0.689 in
Operating Position	11.4 mm	11.4 - 17.5 mm
Operating Temperature [Max]	120 °C	120 - 125 °C
Operating Temperature [Min]	-40 °C	-40 °C
Overtravel	0.4 mm	0.4 - 0.76 mm
Overtravel	0.015 "	0.015 - 0.03 "
Pretravel	0.043 "	0.043 - 0.18 in
Pretravel	1.1 mm	1.1 - 4.6 mm
Release Force	35 gf	8 - 35 gf
Switch Function	On-Mom	On-Mom, Off-Mom
Termination Style	PC Pin	PC Pin, Solder Lug
Voltage Rating - AC	125 V	125 V
Voltage Rating - DC	30 V	30 V

ZM10E Series

SWITCH SNAP ACT SPDT 0.1A 125V

Part	Mechanical Life	Circuit	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating - AC	Ingress Protection	Actuator Type	Switch Function	Termination Style	Mounting Type	Features	Current Rating (Amps)	Operating Position	Operating Position	Overtravel	Overtravel	Pretravel	Pretravel	Release Force	Voltage Rating - DC	Electrical Life	Differential Travel	Differential Travel	Operating Force
Honeywell Sensing and Productivity Solutions ZM10E60E01	1000000 Cycles	SPDT	125 °C	-40 °C	125 V	IP40	Lever, Simulated Roller	On-Mom	PC Pin	Through Hole, Right Angle	Actuator Mounted Left Side	100 mA
Honeywell Sensing and Productivity Solutions ZM10E10C01	10000000 Cycles	SPDT	120 °C	-40 °C	125 V		Lever, Straight	On-Mom	Solder Lug	Chassis Mount		100 mA	11.8 mm	0.465 in	0.6 mm	0.025 "	4 mm	0.157 in	8 gf	30 V	10000 Cycles	0.81 mm	0.032 in	33 gf
Honeywell Sensing and Productivity Solutions ZM10E10B01	10000000 Cycles	SPDT	120 °C	-40 °C	125 V		Lever, Straight	On-Mom	Solder Lug	Chassis Mount		100 mA	11.8 mm	0.465 in	0.6 mm	0.025 "	3.6 mm	0.14 in	10 gf	30 V	10000 Cycles	0.81 mm	0.032 in	35 gf
Honeywell Sensing and Productivity Solutions ZM10E50B01	10000000 Cycles	SPDT	120 °C	-40 °C	125 V		Lever, Straight	On-Mom	PC Pin	Through Hole, Right Angle		100 mA	11.8 mm	0.465 in	0.6 mm	0.025 "	3.6 mm	0.14 in	10 gf	30 V	10000 Cycles	0.81 mm	0.032 in	35 gf
Honeywell Sensing and Productivity Solutions ZM10E50F01	10000000 Cycles	SPDT	120 °C	-40 °C	125 V		Lever, Roller	On-Mom	PC Pin	Through Hole, Right Angle		100 mA	17.5 mm	0.689 in	0.76 mm	0.03 in	3.8 mm	0.15 in	8 gf	30 V	10000 Cycles	0.76 mm	0.03 in	35 gf
Honeywell Sensing and Productivity Solutions ZM10E20H01	10000000 Cycles	SPDT	120 °C	-40 °C	125 V		Lever, Simulated Roller	On-Mom	PC Pin	Through Hole		100 mA	13.7 mm	0.539 in	0.76 mm	0.03 in	4.6 mm	0.18 in	8 gf	30 V	10000 Cycles	0.76 mm	0.03 in	35 gf
Honeywell Sensing and Productivity Solutions ZM10E10F03	1000000 Cycles	SPST-NO	125 °C	-40 °C	125 V	IP40	Lever, Roller	Off-Mom	Solder Lug	Chassis Mount		100 mA
Honeywell Sensing and Productivity Solutions ZM10E50A01	10000000 Cycles	SPDT	120 °C	-40 °C	125 V		Round (Pin Plunger)	On-Mom	PC Pin	Through Hole, Right Angle		100 mA	11.4 mm	0.449 in	0.4 mm	0.015 "	1.1 mm	0.043 "	35 gf	30 V	10000 Cycles	0.2 mm	0.008 in	146 gf
Honeywell Sensing and Productivity Solutions ZM10E10F01	10000000 Cycles	SPDT	120 °C	-40 °C	125 V		Lever, Roller	On-Mom	Solder Lug	Chassis Mount		100 mA	17.5 mm	0.689 in	0.76 mm	0.03 in	3.8 mm	0.15 in	8 gf	30 V	10000 Cycles	0.76 mm	0.03 in	35 gf

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1000	$ 1.69

Description

General part information

ZM10E Series

Switch SPDT Through Hole, Right Angle

Documents

Technical documentation and resources

Z Series Install Instr

Datasheet
