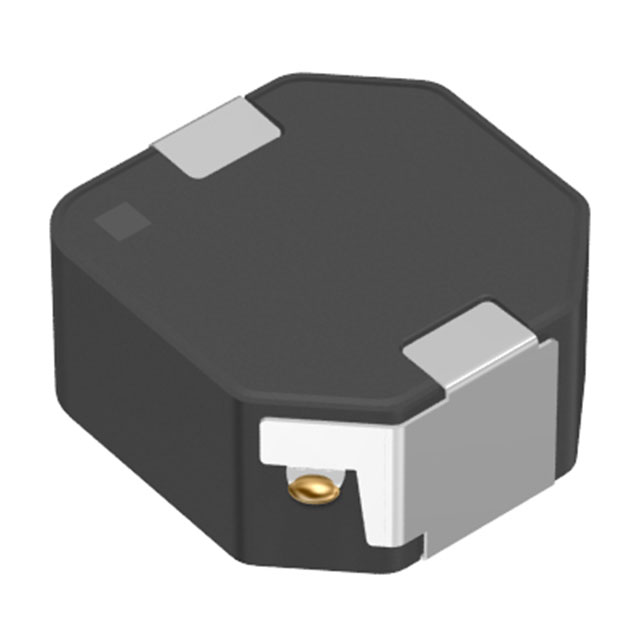

SPM12565VT-3R3M-D
ActiveTDK Corporation
POW INDUCTOR, AEC-Q200, 3.3UH, SHLD/34.6A ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
SPM12565VT-3R3M-D
ActiveTDK Corporation
POW INDUCTOR, AEC-Q200, 3.3UH, SHLD/34.6A ROHS COMPLIANT: YES
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | SPM12565VT-3R3M-D | SPM12565V Series |
|---|---|---|
| Current - Saturation (Isat) | 25.5 A | 10.4 - 32.8 A |
| Current Rating (Amps) | 16.8 A | 6.9 - 22.3 A |
| DC Resistance (DCR) | 4.9 mOhm | 2.8 - 17 mOhm |
| Height - Seated (Max) [Max] [z] | 0.256 in | 0.256 in |
| Height - Seated (Max) [Max] [z] | 6.5 mm | 6.5 mm |
| Inductance | 3.3 µH | 1.5 - 22 ÁH |
| Inductance Frequency - Test | 100 kHz | 100 kHz |
| Material - Core | Metal Composite | Metal Composite |
| Mounting Type | Surface Mount | Surface Mount |
| Operating Temperature [Max] | 155 °C | 155 °C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Package / Case | Nonstandard | Nonstandard |
| Ratings | AEC-Q200 | AEC-Q200 |
| Shielding | Shielded | Shielded |
| Size / Dimension [x] | 0.512 in | 0.512 in |
| Size / Dimension [x] | 13 mm | 13 mm |
| Size / Dimension [y] | 12.5 mm | 12.5 mm |
| Size / Dimension [y] | 0.492 " | 0.492 " |
| Supplier Device Package | 1256 | 1256 |
| Tolerance | 20 % | 20 % |
| Type | Wirewound, Drum Core | Wirewound, Drum Core |
SPM12565V Series
POW INDUCTOR, AEC-Q200, 4.7UH, SHLD/30.1A ROHS COMPLIANT: YES
| Part | Inductance Frequency - Test | Tolerance | Current - Saturation (Isat) | Shielding | Operating Temperature [Max] | Operating Temperature [Min] | Inductance | Mounting Type | Supplier Device Package | Type | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Current Rating (Amps) | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Package / Case | DC Resistance (DCR) | Ratings | Material - Core |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TDK Corporation SPM12565VT-4R7M-D | 100 kHz | 20 % | 22.2 A | Shielded | 155 °C | -55 °C | 4.7 ÁH | Surface Mount | 1256 | Drum Core, Wirewound | 0.256 in | 6.5 mm | 14 A | 12.5 mm | 0.512 in | 13 mm | 0.492 " | Nonstandard | 7.1 mOhm | AEC-Q200 | Metal Composite |
TDK Corporation SPM12565VT-220M-D | 100 kHz | 20 % | 10.4 A | Shielded | 155 °C | -55 °C | 22 µH | Surface Mount | 1256 | Drum Core, Wirewound | 0.256 in | 6.5 mm | 6.9 A | 12.5 mm | 0.512 in | 13 mm | 0.492 " | Nonstandard | AEC-Q200 | Metal Composite | |
TDK Corporation SPM12565VT-2R2M-D | 100 kHz | 20 % | 32.8 A | Shielded | 155 °C | -55 °C | 2.2 µH | Surface Mount | 1256 | Drum Core, Wirewound | 0.256 in | 6.5 mm | 20.2 A | 12.5 mm | 0.512 in | 13 mm | 0.492 " | Nonstandard | AEC-Q200 | Metal Composite | |
TDK Corporation SPM12565VT-100M-D | 100 kHz | 20 % | 16.7 A | Shielded | 155 °C | -55 °C | 10 µH | Surface Mount | 1256 | Drum Core, Wirewound | 0.256 in | 6.5 mm | 12.5 mm | 0.512 in | 13 mm | 0.492 " | Nonstandard | 17 mOhm | AEC-Q200 | Metal Composite | |
TDK Corporation SPM12565VT-1R5M-D | 100 kHz | 20 % | 32.8 A | Shielded | 155 °C | -55 °C | 1.5 µH | Surface Mount | 1256 | Drum Core, Wirewound | 0.256 in | 6.5 mm | 22.3 A | 12.5 mm | 0.512 in | 13 mm | 0.492 " | Nonstandard | 2.8 mOhm | AEC-Q200 | Metal Composite |
TDK Corporation SPM12565VT-3R3M-D | 100 kHz | 20 % | 25.5 A | Shielded | 155 °C | -55 °C | 3.3 µH | Surface Mount | 1256 | Drum Core, Wirewound | 0.256 in | 6.5 mm | 16.8 A | 12.5 mm | 0.512 in | 13 mm | 0.492 " | Nonstandard | 4.9 mOhm | AEC-Q200 | Metal Composite |
TDK Corporation SPM12565VT-6R8M-D | 100 kHz | 20 % | 20.9 A | Shielded | 155 °C | -55 °C | 6.8 µH | Surface Mount | 1256 | Drum Core, Wirewound | 0.256 in | 6.5 mm | 11.6 A | 12.5 mm | 0.512 in | 13 mm | 0.492 " | Nonstandard | 10.3 mOhm | AEC-Q200 | Metal Composite |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 4.53 | |
| 10 | $ 3.79 | |||
| 25 | $ 3.46 | |||
| 50 | $ 2.97 | |||
| 100 | $ 2.72 | |||
| 250 | $ 2.64 | |||
| Digi-Reel® | 1 | $ 4.53 | ||
| 10 | $ 3.79 | |||
| 25 | $ 3.46 | |||
| 50 | $ 2.97 | |||
| 100 | $ 2.72 | |||
| 250 | $ 2.64 | |||
| Tape & Reel (TR) | 500 | $ 2.55 | ||
| 1000 | $ 2.39 | |||
| 2500 | $ 2.31 | |||
| Newark | Each (Supplied on Cut Tape) | 1 | $ 4.17 | |
| 10 | $ 2.46 | |||
| 25 | $ 2.42 | |||
| 50 | $ 2.37 | |||
| 100 | $ 2.33 | |||
| 250 | $ 2.15 | |||
| 1000 | $ 1.69 | |||
Description
General part information
SPM12565V Series
3.3 µH Shielded Drum Core, Wirewound Inductor 16.8 A 4.9mOhm Nonstandard
