325311-16-0
ActiveCurtis Industries

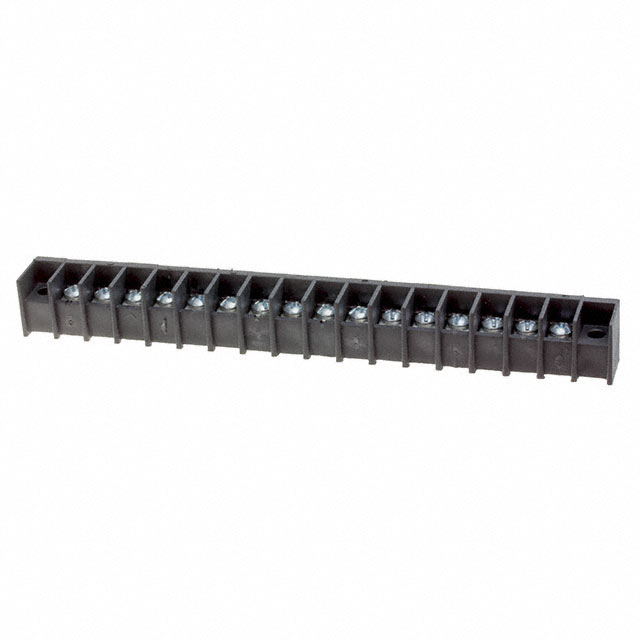

CONN BARRIER STRP 16CIRC 0.325"
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
325311-16-0
ActiveCurtis Industries
CONN BARRIER STRP 16CIRC 0.325"
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 325311-16-0 | 325311 Series |
|---|---|---|
| Barrier Type | 3 Wall (Tri) | 3 Wall (Tri) |
| Bottom Termination | PC Pin | PC Pin |
| Current Rating (Amps) | 15 A | 15 A |
| Material - Insulation | Polypropylene (PP) | Polypropylene (PP) |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Through Hole | Through Hole |
| Number of Circuits | 16 | 2 - 23 |
| Number of Rows | 1 | 1 |
| Number of Wire Entries | 16 | 2 - 17 |
| Number of Wire Entries | - | 23 |
| Operating Temperature | 105 C | 105 C |
| Pitch [x] | 8.26 mm | 8.26 mm |
| Pitch [x] | 0.325 in | 0.325 in |
| Terminal Block Type | Barrier Block | Barrier Block |
| Top Termination | Screws | Screws |
| Voltage Rating | 300 VDC | 300 VDC |
| Wire Gauge [Max] | 22 AWG | 22 AWG |
| Wire Gauge [Min] | 14 AWG | 14 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 8.98 | |
| 10 | $ 7.08 | |||
325311 Series
CONN BARRIER STRIP 2CIRC 0.325"
| Part | Bottom Termination | Top Termination | Current Rating (Amps) | Mounting Type | Material - Insulation | Number of Rows | Wire Gauge [Min] | Wire Gauge [Max] | Material Flammability Rating | Number of Circuits | Voltage Rating | Number of Wire Entries | Operating Temperature | Terminal Block Type | Barrier Type | Pitch [x] | Pitch [x] | Number of Wire Entries [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Curtis Industries 325311-02-0 | PC Pin | Screws | 15 A | Through Hole | Polypropylene (PP) | 1 | 14 AWG | 22 AWG | UL94 V-0 | 2 | 300 VDC | 2 | 105 C | Barrier Block | 3 Wall (Tri) | 8.26 mm | 0.325 in | |
Curtis Industries 325311-23-0 | PC Pin | Screws | 15 A | Through Hole | Polypropylene (PP) | 1 | 14 AWG | 22 AWG | UL94 V-0 | 23 | 300 VDC | 105 C | Barrier Block | 3 Wall (Tri) | 8.26 mm | 0.325 in | 23 | |
Curtis Industries 325311-10-0 | PC Pin | Screws | 15 A | Through Hole | Polypropylene (PP) | 1 | 14 AWG | 22 AWG | UL94 V-0 | 10 | 300 VDC | 10 | 105 C | Barrier Block | 3 Wall (Tri) | 8.26 mm | 0.325 in | |
Curtis Industries 325311-16-0 | PC Pin | Screws | 15 A | Through Hole | Polypropylene (PP) | 1 | 14 AWG | 22 AWG | UL94 V-0 | 16 | 300 VDC | 16 | 105 C | Barrier Block | 3 Wall (Tri) | 8.26 mm | 0.325 in | |
Curtis Industries 325311-12-0 | PC Pin | Screws | 15 A | Through Hole | Polypropylene (PP) | 1 | 14 AWG | 22 AWG | UL94 V-0 | 12 | 300 VDC | 12 | 105 C | Barrier Block | 3 Wall (Tri) | 8.26 mm | 0.325 in | |
Curtis Industries 325311-04-0 | PC Pin | Screws | 15 A | Through Hole | Polypropylene (PP) | 1 | 14 AWG | 22 AWG | UL94 V-0 | 4 | 300 VDC | 4 | 105 C | Barrier Block | 3 Wall (Tri) | 8.26 mm | 0.325 in | |
Curtis Industries 325311-07-0 | PC Pin | Screws | 15 A | Through Hole | Polypropylene (PP) | 1 | 14 AWG | 22 AWG | UL94 V-0 | 7 | 300 VDC | 7 | 105 C | Barrier Block | 3 Wall (Tri) | 8.26 mm | 0.325 in | |
Curtis Industries 325311-09-0 | PC Pin | Screws | 15 A | Through Hole | Polypropylene (PP) | 1 | 14 AWG | 22 AWG | UL94 V-0 | 300 VDC | 9 | 105 C | Barrier Block | 3 Wall (Tri) | 8.26 mm | 0.325 in | ||
Curtis Industries 325311-15-0 | PC Pin | Screws | 15 A | Through Hole | Polypropylene (PP) | 1 | 14 AWG | 22 AWG | UL94 V-0 | 15 | 300 VDC | 15 | 105 C | Barrier Block | 3 Wall (Tri) | 8.26 mm | 0.325 in | |
Curtis Industries 325311-17-0 | PC Pin | Screws | 15 A | Through Hole | Polypropylene (PP) | 1 | 14 AWG | 22 AWG | UL94 V-0 | 17 | 300 VDC | 17 | 105 C | Barrier Block | 3 Wall (Tri) | 8.26 mm | 0.325 in |
Description
General part information
325311 Series
16 Circuit 0.325" (8.26mm) Barrier Block Connector Screws
