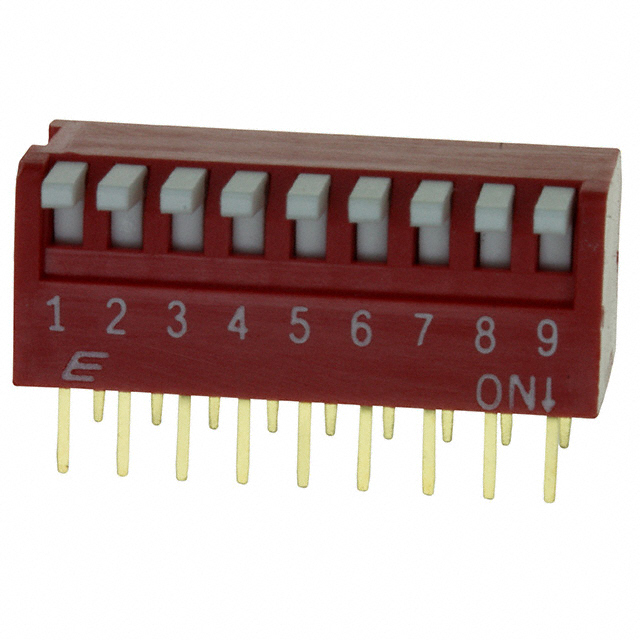

KAP1109E

Active

E-Switch

SWITCH PIANO DIP SPST 0.025A 24V

Search across all available documentation for this part.

Active

E-Switch

SWITCH PIANO DIP SPST 0.025A 24V

Technical Specifications

Parameters and characteristics for this part

Specification	KAP1109E

Actuator Level	Raised
Actuator Type	Piano
Body Material	Polybutylene Terephthalate (PBT), Glass Filled
Circuit	SPST
Contact Finish	Gold
Contact Material	Phosphor Bronze
Current Rating (Amps)	25 mA
Electrical Life	2000 Steps
Height Above Board	10.2 mm
Height Above Board	0.402 in
Length	0.961 in
Length	24.41 mm
Mechanical Life	2000 Cycles
Mounting Type	Through Hole, Right Angle
Number of Positions	9
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Pitch	Full
Pitch [x]	0.1 in
Pitch [x]	2.54 mm
Termination Style	PC Pin
Voltage Rating	24 VDC
Washable	False

Part	Height Above Board	Height Above Board	Contact Finish	Actuator Type	Number of Positions	Voltage Rating	Electrical Life	Termination Style	Contact Material	Actuator Level	Body Material	Washable	Mounting Type	Mechanical Life	Current Rating (Amps)	Pitch [x]	Pitch	Pitch [x]	Circuit	Operating Temperature [Max]	Operating Temperature [Min]	Length	Length
E-Switch KAP1109E	10.2 mm	0.402 in	Gold	Piano	9	24 VDC	2000 Steps	PC Pin	Phosphor Bronze	Raised	Polybutylene Terephthalate (PBT) Glass Filled		Through Hole Right Angle	2000 Cycles	25 mA	0.1 in	Full	2.54 mm	SPST	85 °C	-40 °C	0.961 in	24.41 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1007	$ 1.43

General part information

Dip Switch SPST 9 Position Through Hole, Right Angle Piano Actuator 25mA 24VDC
