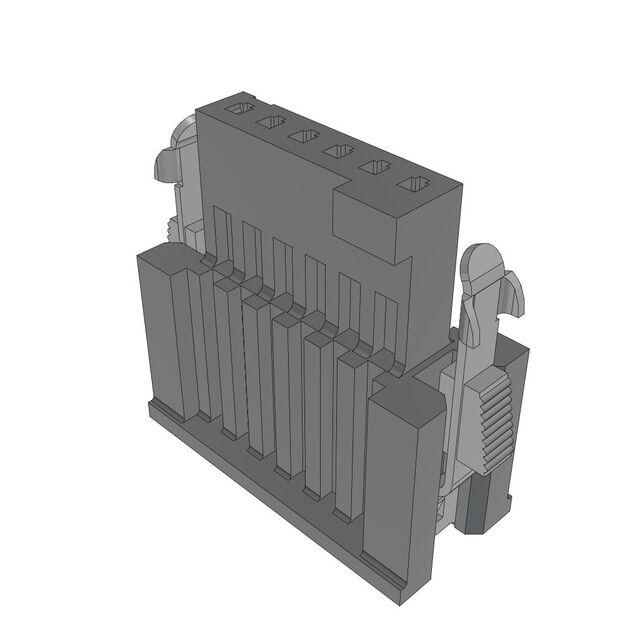

ISDF-06-S-M

Active

Samtec Inc.

CONN INSULATOR HSG 6POS 1.27MM

Search across all available documentation for this part.

Active

Samtec Inc.

CONN INSULATOR HSG 6POS 1.27MM

Technical Specifications

Parameters and characteristics for this part

Part	Fastening Type	Contact Termination	Pitch [x]	Pitch [x]	Color	Number of Positions	Insulation Material	Note	Connector Type	Number of Rows	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Row Spacing	Row Spacing	Features
Samtec Inc. ISDF-06-S	Latch Lock	Crimp	0.05 in	1.27 mm	Black	6	Liquid Crystal Polymer (LCP)	Contacts Not Included	Insulator	1	Free Hanging (In-Line)	-55 °C	125 °C	Female Socket
Samtec Inc. ISDF-06-D	Latch Lock	Crimp	0.05 in	1.27 mm	Black	12	Liquid Crystal Polymer (LCP)	Contacts Not Included	Insulator	2	Free Hanging (In-Line)	-55 °C	125 °C	Female Socket	1.27 mm	0.05 in
Samtec Inc. ISDF-06-D-DS	Latch Lock	Crimp	0.05 in	1.27 mm	Black	12	Liquid Crystal Polymer (LCP)	Contacts Not Included	Insulator	2	Free Hanging (In-Line)	-55 °C	125 °C	Female Socket	1.27 mm	0.05 in	Mating Flange
Samtec Inc. ISDF-06-S-M	Latch Lock	Crimp	0.05 in	1.27 mm	Black	6	Liquid Crystal Polymer (LCP)	Contacts Not Included	Insulator	1	Free Hanging (In-Line)	-55 °C	125 °C	Female Socket			Retention Latches
