MC100EP17MNG

Active

ON Semiconductor

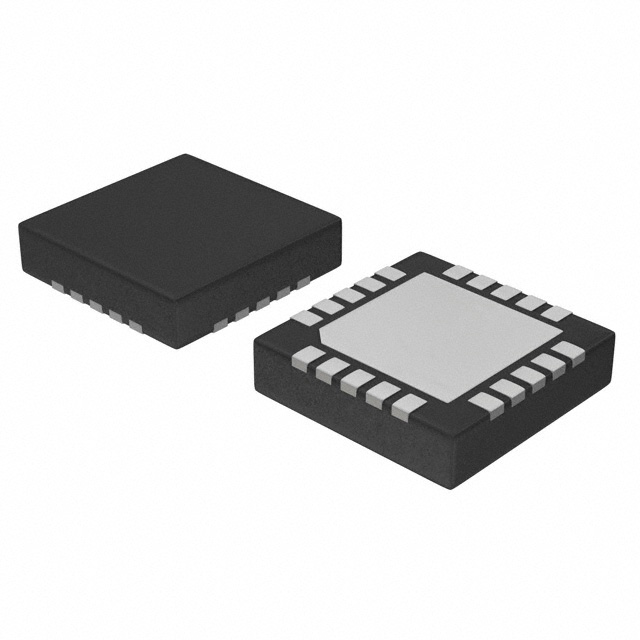

IC RCVR/DRVR QUAD DIFF ECL 20QFN

Search across all available documentation for this part.

Active

ON Semiconductor

IC RCVR/DRVR QUAD DIFF ECL 20QFN

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Differential Receiver/Driver IC 20-QFN (4x4)

Technical documentation and resources

Specification	MC100EP17MNG	100EP17 Series

Logic Type	Differential Receiver/Driver	Differential Receiver/Driver
Mounting Type	Surface Mount	Surface Mount
Number of Bits	4	4
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	20-VFQFN Exposed Pad	20-TSSOP, 20-SOIC, 20-VFQFN Exposed Pad
Package / Case	-	0.295 - 4.4 mm
Package / Case	-	0.173 in
Package / Case	-	7.5 mm
Supplier Device Package	20-QFN (4x4)	20-TSSOP, 20-SOIC, 20-QFN (4x4)
Supply Voltage [Max]	5.5 V	5.5 V
Supply Voltage [Min]	3 V	3 V

Part	Number of Bits	Supplier Device Package	Mounting Type	Logic Type	Supply Voltage [Min]	Supply Voltage [Max]	Package / Case [y]	Package / Case	Package / Case [x]	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case [y]
ON Semiconductor MC100EP17DTR2G	4	20-TSSOP	Surface Mount	Differential Receiver/Driver	3 V	5.5 V	4.4 mm	20-TSSOP	0.173 in	85 °C	-40 °C
ON Semiconductor MC100EP17DW	4	20-SOIC	Surface Mount	Differential Receiver/Driver	3 V	5.5 V	0.295 in	20-SOIC		85 °C	-40 °C	7.5 mm
ON Semiconductor MC100EP17MNG	4	20-QFN (4x4)	Surface Mount	Differential Receiver/Driver	3 V	5.5 V		20-VFQFN Exposed Pad		85 °C	-40 °C
