PRG.M1.4GL.LC65G

Active

LEMO

CIRCULAR CONNECTORS &AMP; CABLE CONNECTORS ROHS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

PRG.M1.4GL.LC65G

Active

LEMO

CIRCULAR CONNECTORS &AMP; CABLE CONNECTORS ROHS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 45.90
		10	$ 42.12
		25	$ 40.50
		50	$ 39.15
		100	$ 36.99
		250	$ 35.91
LCSC	Piece	1	$ 41.81
		200	$ 16.68
		500	$ 16.13
		1000	$ 15.85

Description

General part information

PRG.M1 Series

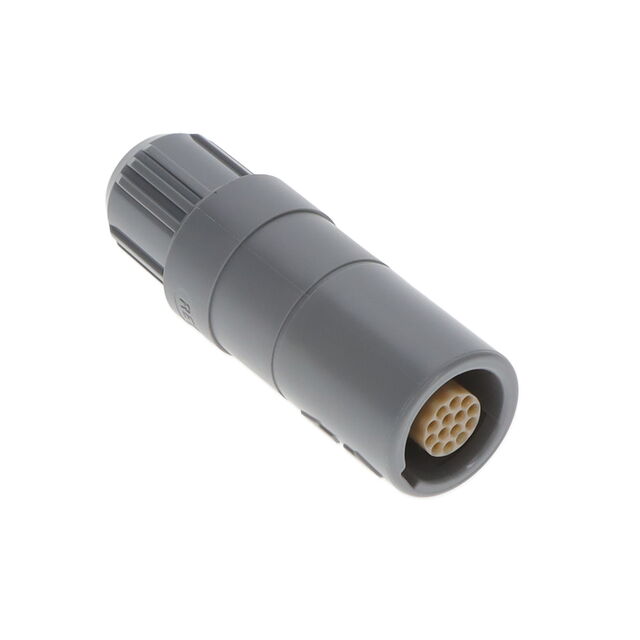

14 Position Circular Connector Receptacle, Female Sockets Solder Cup

Documents

Technical documentation and resources

Datasheet

Specification	PRG.M1.4GL.LC65G	PRG.M1 Series

Applications	Medical, Industrial, Automotive, Testing Equipment & Measurement	Medical, Industrial, Automotive, Testing Equipment & Measurement
Backshell Material, Plating	Polysulfone (PSU)	Polysulfone (PSU)
Cable Opening	-	2.7 mm
Cable Opening	-	0.154 in
Cable Opening	-	3.9 mm
Cable Opening	-	0.106 in
Cable Opening	-	0.157 in
Cable Opening	-	0.205 in
Cable Opening	-	4 mm
Cable Opening	-	5.2 mm
Cable Opening [custom]	0.209 in, 0.256 in	0.209 - 0.256 in
Cable Opening [custom]	6.5 mm, 5.3 mm	5.3 - 6.5 mm
Color	Gray	Gray, Blue, Yellow, Black, Green, Red
Connector Type	Receptacle, Female Sockets	Receptacle, Female Sockets
Contact Finish - Mating	Gold	Gold
Current Rating (Amps)	2 A	2 - 3 A
Fastening Type	Detent Lock, Push-Pull	Detent Lock, Push-Pull
Features	Backshell	Backshell
Ingress Protection	IP50	IP50
Insert Material	Polyetheretherketone (PEEK)	Polyetheretherketone (PEEK)
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions	14	10 - 14
Operating Temperature [Max]	150 °C	150 °C
Operating Temperature [Min]	-50 °C	-50 °C
Orientation	G	G
Primary Material	Plastic	Plastic
Shell Material	Polysulfone (PSU)	Polysulfone (PSU)
Shell Size - Insert	M14	M14, M10
Shielding	Unshielded	Unshielded

Part

Ingress Protection

Color

Shielding

Shell Material

Fastening Type

Mounting Type

Current Rating (Amps)

Backshell Material, Plating

Applications

Operating Temperature [Max]

Operating Temperature [Min]

Number of Positions

Orientation

Features

Connector Type

Shell Size - Insert

Primary Material

Cable Opening [custom]

Contact Finish - Mating

Insert Material

Cable Opening [Min] [diameter]

Cable Opening [Max] [diameter]

Cable Opening [Min] [diameter]

Cable Opening [Min] [custom]

Cable Opening [Max] [custom]

Cable Opening [Min] [custom]

Cable Opening [Max] [custom]

LEMO

PRG.M1.4GL.LC65A

IP50

Blue, Gray

Unshielded

Polysulfone (PSU)

Detent Lock, Push-Pull

Free Hanging (In-Line)

2 A

Polysulfone (PSU)

Automotive, Industrial, Medical, Testing Equipment & Measurement

150 °C

-50 °C

Backshell

Receptacle, Female Sockets

M14

Plastic

0.209 in, 0.256 in

5.3 mm, 6.5 mm

Gold

Polyetheretherketone (PEEK)

LEMO

PRG.M1.4GL.LC39J

IP50

Gray, Yellow

Unshielded

Polysulfone (PSU)

Detent Lock, Push-Pull

Free Hanging (In-Line)

2 A

Polysulfone (PSU)

Automotive, Industrial, Medical, Testing Equipment & Measurement

150 °C

-50 °C

Backshell

Receptacle, Female Sockets

M14

Plastic

Gold

Polyetheretherketone (PEEK)

2.7 mm

0.154 in

3.9 mm

0.106 in

LEMO

PRG.M1.4NL.LC39V

IP50

Black, Green

Unshielded

Polysulfone (PSU)

Detent Lock, Push-Pull

Free Hanging (In-Line)

2 A

Polysulfone (PSU)

Automotive, Industrial, Medical, Testing Equipment & Measurement

150 °C

-50 °C

Backshell

Receptacle, Female Sockets

M14

Plastic

Gold

Polyetheretherketone (PEEK)

2.7 mm

0.154 in

3.9 mm

0.106 in

LEMO

PRG.M1.0NL.LC39N

IP50

Black

Unshielded

Polysulfone (PSU)

Detent Lock, Push-Pull

Free Hanging (In-Line)

3 A

Polysulfone (PSU)

Automotive, Industrial, Medical, Testing Equipment & Measurement

150 °C

-50 °C

Backshell

Receptacle, Female Sockets

M10

Plastic

Gold

Polyetheretherketone (PEEK)

2.7 mm

0.154 in

3.9 mm

0.106 in

LEMO

PRG.M1.4GL.LC65G

IP50

Gray

Unshielded

Polysulfone (PSU)

Detent Lock, Push-Pull

Free Hanging (In-Line)

2 A

Polysulfone (PSU)

Automotive, Industrial, Medical, Testing Equipment & Measurement

150 °C

-50 °C

Backshell

Receptacle, Female Sockets

M14

Plastic

0.209 in, 0.256 in

5.3 mm, 6.5 mm

Gold

Polyetheretherketone (PEEK)

LEMO

PRG.M1.4GL.LC39N

IP50

Unshielded

Polysulfone (PSU)

Detent Lock, Push-Pull

Free Hanging (In-Line)

2 A

Polysulfone (PSU)

Automotive, Industrial, Medical, Testing Equipment & Measurement

150 °C

-50 °C

Backshell

Receptacle, Female Sockets

M14

Plastic

Gold

Polyetheretherketone (PEEK)

2.7 mm

0.154 in

3.9 mm

0.106 in

LEMO

PRG.M1.0GL.LC65Z

IP50

Gray

Unshielded

Polysulfone (PSU)

Detent Lock, Push-Pull

Free Hanging (In-Line)

3 A

Polysulfone (PSU)

Automotive, Industrial, Medical, Testing Equipment & Measurement

150 °C

-50 °C

Backshell

Receptacle, Female Sockets

M10

Plastic

0.209 in, 0.256 in

5.3 mm, 6.5 mm

Gold

Polyetheretherketone (PEEK)

LEMO

PRG.M1.4GL.LC39V

IP50

Gray, Green

Unshielded

Polysulfone (PSU)

Detent Lock, Push-Pull

Free Hanging (In-Line)

2 A

Polysulfone (PSU)

Automotive, Industrial, Medical, Testing Equipment & Measurement

150 °C

-50 °C

Backshell

Receptacle, Female Sockets

M14

Plastic

Gold

Polyetheretherketone (PEEK)

2.7 mm

0.154 in

3.9 mm

0.106 in

LEMO

PRG.M1.0GL.LC52G

IP50

Gray

Unshielded

Polysulfone (PSU)

Detent Lock, Push-Pull

Free Hanging (In-Line)

3 A

Polysulfone (PSU)

Automotive, Industrial, Medical, Testing Equipment & Measurement

150 °C

-50 °C

Backshell

Receptacle, Female Sockets

M10

Plastic

Gold

Polyetheretherketone (PEEK)

0.157 in

0.205 in

4 mm

5.2 mm

LEMO

PRG.M1.0GL.LC52R

IP50

Gray, Red

Unshielded

Polysulfone (PSU)

Detent Lock, Push-Pull

Free Hanging (In-Line)

3 A

Polysulfone (PSU)

Automotive, Industrial, Medical, Testing Equipment & Measurement

150 °C

-50 °C

Backshell

Receptacle, Female Sockets

M10

Plastic

Gold

Polyetheretherketone (PEEK)

0.157 in

0.205 in

4 mm

5.2 mm

Part	Ingress Protection	Color	Shielding	Shell Material	Fastening Type	Mounting Type	Current Rating (Amps)	Backshell Material, Plating	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions	Orientation	Features	Connector Type	Shell Size - Insert	Primary Material	Cable Opening [custom]	Cable Opening [custom]	Contact Finish - Mating	Insert Material	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]
LEMO PRG.M1.4GL.LC65A	IP50	Blue, Gray	Unshielded	Polysulfone (PSU)	Detent Lock, Push-Pull	Free Hanging (In-Line)	2 A	Polysulfone (PSU)	Automotive, Industrial, Medical, Testing Equipment & Measurement	150 °C	-50 °C	14	G	Backshell	Receptacle, Female Sockets	M14	Plastic	0.209 in, 0.256 in	5.3 mm, 6.5 mm	Gold	Polyetheretherketone (PEEK)
LEMO PRG.M1.4GL.LC39J	IP50	Gray, Yellow	Unshielded	Polysulfone (PSU)	Detent Lock, Push-Pull	Free Hanging (In-Line)	2 A	Polysulfone (PSU)	Automotive, Industrial, Medical, Testing Equipment & Measurement	150 °C	-50 °C	14	G	Backshell	Receptacle, Female Sockets	M14	Plastic			Gold	Polyetheretherketone (PEEK)	2.7 mm	0.154 in	3.9 mm	0.106 in
LEMO PRG.M1.4NL.LC39V	IP50	Black, Green	Unshielded	Polysulfone (PSU)	Detent Lock, Push-Pull	Free Hanging (In-Line)	2 A	Polysulfone (PSU)	Automotive, Industrial, Medical, Testing Equipment & Measurement	150 °C	-50 °C	14	G	Backshell	Receptacle, Female Sockets	M14	Plastic			Gold	Polyetheretherketone (PEEK)	2.7 mm	0.154 in	3.9 mm	0.106 in
LEMO PRG.M1.0NL.LC39N	IP50	Black	Unshielded	Polysulfone (PSU)	Detent Lock, Push-Pull	Free Hanging (In-Line)	3 A	Polysulfone (PSU)	Automotive, Industrial, Medical, Testing Equipment & Measurement	150 °C	-50 °C	10	G	Backshell	Receptacle, Female Sockets	M10	Plastic			Gold	Polyetheretherketone (PEEK)	2.7 mm	0.154 in	3.9 mm	0.106 in
LEMO PRG.M1.4GL.LC65G	IP50	Gray	Unshielded	Polysulfone (PSU)	Detent Lock, Push-Pull	Free Hanging (In-Line)	2 A	Polysulfone (PSU)	Automotive, Industrial, Medical, Testing Equipment & Measurement	150 °C	-50 °C	14	G	Backshell	Receptacle, Female Sockets	M14	Plastic	0.209 in, 0.256 in	5.3 mm, 6.5 mm	Gold	Polyetheretherketone (PEEK)
LEMO PRG.M1.4GL.LC39N	IP50		Unshielded	Polysulfone (PSU)	Detent Lock, Push-Pull	Free Hanging (In-Line)	2 A	Polysulfone (PSU)	Automotive, Industrial, Medical, Testing Equipment & Measurement	150 °C	-50 °C	14	G	Backshell	Receptacle, Female Sockets	M14	Plastic			Gold	Polyetheretherketone (PEEK)	2.7 mm	0.154 in	3.9 mm	0.106 in
LEMO PRG.M1.0GL.LC65Z	IP50	Gray	Unshielded	Polysulfone (PSU)	Detent Lock, Push-Pull	Free Hanging (In-Line)	3 A	Polysulfone (PSU)	Automotive, Industrial, Medical, Testing Equipment & Measurement	150 °C	-50 °C	10	G	Backshell	Receptacle, Female Sockets	M10	Plastic	0.209 in, 0.256 in	5.3 mm, 6.5 mm	Gold	Polyetheretherketone (PEEK)
LEMO PRG.M1.4GL.LC39V	IP50	Gray, Green	Unshielded	Polysulfone (PSU)	Detent Lock, Push-Pull	Free Hanging (In-Line)	2 A	Polysulfone (PSU)	Automotive, Industrial, Medical, Testing Equipment & Measurement	150 °C	-50 °C	14	G	Backshell	Receptacle, Female Sockets	M14	Plastic			Gold	Polyetheretherketone (PEEK)	2.7 mm	0.154 in	3.9 mm	0.106 in
LEMO PRG.M1.0GL.LC52G	IP50	Gray	Unshielded	Polysulfone (PSU)	Detent Lock, Push-Pull	Free Hanging (In-Line)	3 A	Polysulfone (PSU)	Automotive, Industrial, Medical, Testing Equipment & Measurement	150 °C	-50 °C	10	G	Backshell	Receptacle, Female Sockets	M10	Plastic			Gold	Polyetheretherketone (PEEK)					0.157 in	0.205 in	4 mm	5.2 mm
LEMO PRG.M1.0GL.LC52R	IP50	Gray, Red	Unshielded	Polysulfone (PSU)	Detent Lock, Push-Pull	Free Hanging (In-Line)	3 A	Polysulfone (PSU)	Automotive, Industrial, Medical, Testing Equipment & Measurement	150 °C	-50 °C	10	G	Backshell	Receptacle, Female Sockets	M10	Plastic			Gold	Polyetheretherketone (PEEK)					0.157 in	0.205 in	4 mm	5.2 mm
