163A16229X

Active

Amphenol CONEC

CONN D-SUB PLUG 25POS VERT SLDR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

163A16229X

Active

Amphenol CONEC

CONN D-SUB PLUG 25POS VERT SLDR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	163A16229X

Color	Black
Connector Style	D-Sub
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	7.5 A
Dielectric Material	Polybutylene Terephthalate (PBT), Glass Filled
Features	Grounding Indents, Board Lock
Flange Feature	Board Side (M3)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Size, Connector Layout [custom]	DB, B
Shell Size, Connector Layout [custom]	3
Termination	Solder
Voltage Rating	125 VDC

163A162 Series

Part	Contact Finish	Contact Finish Thickness	Voltage Rating	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Dielectric Material	Material Flammability Rating	Contact Type	Color	Number of Rows	Connector Style	Number of Positions	Connector Type	Features	Contact Material	Flange Feature	Current Rating (Amps)	Shell Size, Connector Layout	Contact Finish Thickness	Contact Finish Thickness	Shell Size, Connector Layout
Amphenol CONEC 163A16209X	Gold	Flash	125 VDC	DE E	1	Solder	-55 °C	125 °C	Through Hole	Polybutylene Terephthalate (PBT) Glass Filled	UL94 V-0	Signal	Black	2	D-Sub	9	Male Pins Plug	Board Lock Grounding Indents	Copper Alloy	Board Side (M3)	7.5 A
Amphenol CONEC 163A16269X	Gold	Flash	125 VDC			Solder	-55 °C	125 °C	Through Hole	Polybutylene Terephthalate (PBT) Glass Filled	UL94 V-0	Signal	Black	2	D-Sub	15	Male Pins Plug	Board Lock Grounding Indents	Copper Alloy	4-40	7.5 A	2
Amphenol CONEC 163A16219X	Gold	Flash	125 VDC			Solder	-55 °C	125 °C	Through Hole	Polybutylene Terephthalate (PBT) Glass Filled	UL94 V-0	Signal	Black	2	D-Sub	15	Male Pins Plug	Board Lock Grounding Indents	Copper Alloy	Board Side (M3)	7.5 A	2
Amphenol CONEC 163A16299X	Gold	Flash	125 VDC			Solder	-55 °C	125 °C	Through Hole	Polybutylene Terephthalate (PBT) Glass Filled	UL94 V-0	Signal	Black	3	D-Sub	50	Male Pins Plug	Board Lock Grounding Indents	Copper Alloy	4-40	7.5 A	5
Amphenol CONEC 163A16229X	Gold	Flash	125 VDC	B DB	3	Solder	-55 °C	125 °C	Through Hole	Polybutylene Terephthalate (PBT) Glass Filled	UL94 V-0	Signal	Black	2	D-Sub		Male Pins Plug	Board Lock Grounding Indents	Copper Alloy	Board Side (M3)	7.5 A
Amphenol CONEC 163A16259X	Gold		125 VDC	DE E	1	Solder	-55 °C	125 °C	Through Hole	Polybutylene Terephthalate (PBT) Glass Filled	UL94 V-0	Signal	Black	2	D-Sub	9	Male Pins Plug	Board Lock Grounding Indents	Copper Alloy	4-40	7.5 A		8 çin	0.203 çm
Amphenol CONEC 163A16289X	Gold	Flash	125 VDC			Solder	-55 °C	125 °C	Through Hole	Polybutylene Terephthalate (PBT) Glass Filled	UL94 V-0	Signal	Black	2	D-Sub	37	Male Pins Plug	Board Lock Grounding Indents	Copper Alloy	4-40	7.5 A				4 (DC C)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 12.38
		10	$ 10.97
		25	$ 10.55
		50	$ 10.13
		100	$ 9.56
		250	$ 8.72
		500	$ 8.16
		1000	$ 7.48

Description

General part information

163A162 Series

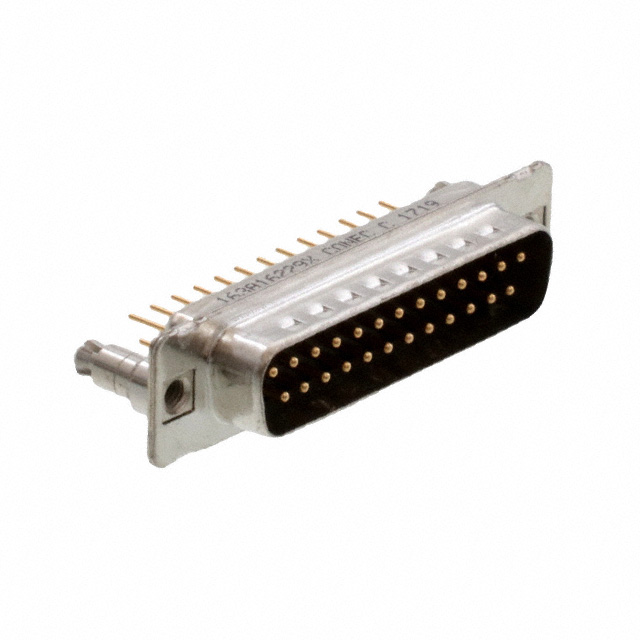

25 Position D-Sub Plug, Male Pins Connector
