C2471A.41.10

Active

Prysmian Group

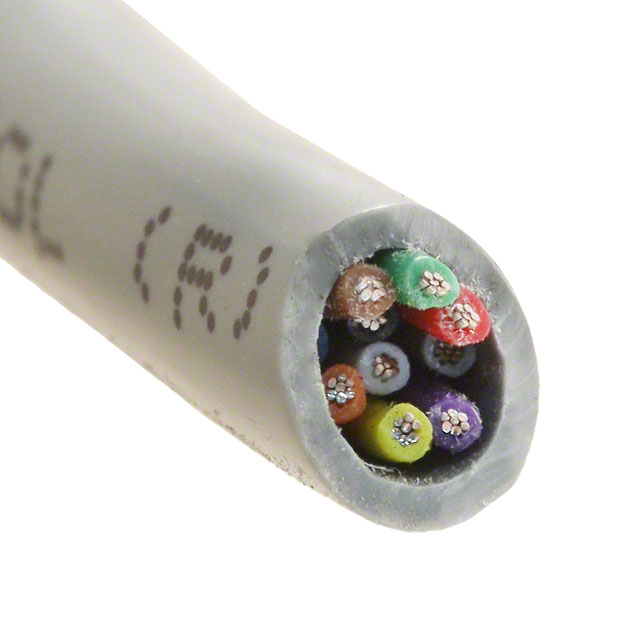

CABLE 10COND 24AWG GRAY 100'

Search across all available documentation for this part.

Active

Prysmian Group

CABLE 10COND 24AWG GRAY 100'

Technical Specifications

Parameters and characteristics for this part

Specification	C2471A.41.10

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	32 AWG
Conductor Strand [custom]	7
Jacket (Insulation) Diameter [diameter]	6.2 mm
Jacket (Insulation) Diameter [diameter]	0.244 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Gray
Length	1000 ft
Length	304.8 m
Length [x]	30.5 m
Length [x]	100 ft
Number of Conductors	10
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Usage	Control, Communication
Voltage	300 V
Wire Gauge	24 AWG

Part	Conductor Material	Number of Conductors	Jacket (Insulation) Material	Conductor Insulation	Jacket Color	Length [x]	Length [x]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Voltage	Operating Temperature [Min]	Operating Temperature [Max]	Cable Type	Wire Gauge	Usage	Length	Length	Conductor Strand [custom]	Conductor Strand [custom]
Prysmian Group C2471A.41.10	Copper Tinned	10	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)	Gray	30.5 m	100 ft	6.2 mm	0.244 in	300 V	-20 C	80 C	Multi-Conductor	24 AWG	Communication Control	1000 ft	304.8 m	32 AWG	7

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

10 Conductor Multi-Conductor Cable Gray 24 AWG 100.0' (30.5m)

Technical documentation and resources

No documents available
