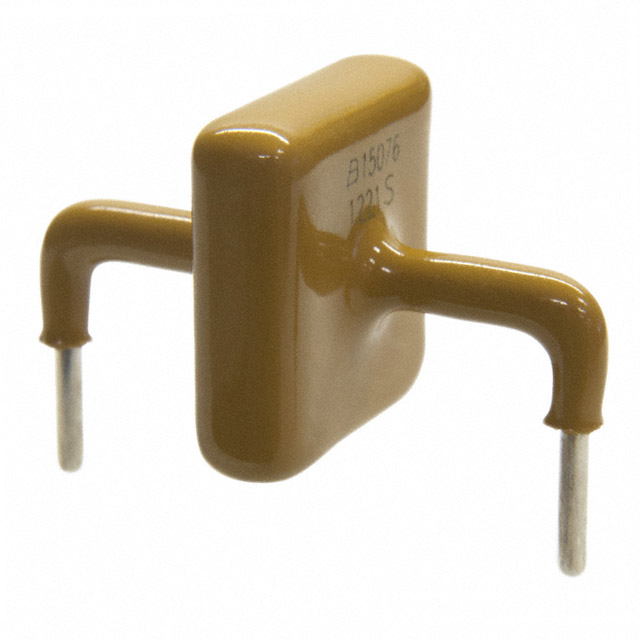

PTVS15-058C-TH

Active

Bourns Inc.

TVS DIODE 58VWM 110VC AXIAL

Search across all available documentation for this part.

Active

Bourns Inc.

TVS DIODE 58VWM 110VC AXIAL

Technical Specifications

Parameters and characteristics for this part

Specification	PTVS15-058C-TH

Applications	General Purpose
Bidirectional Channels [custom]	1
Capacitance @ Frequency	12000 pF
Current - Peak Pulse (10/1000µs)	15 kA
Current - Peak Pulse (10/1000µs)	15000 A
Mounting Type	Through Hole
Operating Temperature [Max]	125 ¯C
Operating Temperature [Min]	-55 °C
Package / Case	Axial, Right Angle Bend
Package / Case	24.15 mm
Power Line Protection	False
Supplier Device Package	Axial
Type	Zener
Voltage - Breakdown (Min) [Min]	64 V
Voltage - Clamping (Max) @ Ipp	110 V
Voltage - Reverse Standoff (Typ)	58 V

Part	Package / Case	Package / Case	Applications	Supplier Device Package	Capacitance @ Frequency	Mounting Type	Voltage - Reverse Standoff (Typ)	Operating Temperature [Max]	Operating Temperature [Min]	Current - Peak Pulse (10/1000µs)	Current - Peak Pulse (10/1000µs)	Voltage - Breakdown (Min) [Min]	Type	Power Line Protection	Voltage - Clamping (Max) @ Ipp	Bidirectional Channels [custom]
Bourns Inc. PTVS15-058C-TH	Axial Right Angle Bend	24.15 mm	General Purpose	Axial	12000 pF	Through Hole	58 V	125 ¯C	-55 °C	15 kA	15000 A	64 V	Zener		110 V	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

110V Clamp 15000A (15kA) (8/20µs) Ipp Tvs Diode Through Hole Axial
