MAX11947EVKIT#

Active

Analog Devices Inc./Maxim Integrated

4 CHANNEL AISG 3.0 COMPLIANT MOD

Search across all available documentation for this part.

Active

Analog Devices Inc./Maxim Integrated

4 CHANNEL AISG 3.0 COMPLIANT MOD

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	MAX11947EVKIT#	MAX11947 Series

Antenna Type	-	Antenna Not Included
Data Rate	-	115.2 kbps
For Use With/Related Products	MAX11947	MAX11947
Modulation	-	OOK
Mounting Type	-	Surface Mount
Operating Temperature	-	-40 °C
Operating Temperature	-	105 ░C
Package / Case	-	20-WFQFN Exposed Pad
Power - Output	-	7 dBm
Sensitivity	-	-20.5 dBm
Serial Interfaces	-	SPI
Supplied Contents	Board(s)	Board(s)
Type	Modem	Modem
Utilized IC / Part	-	MAX11947
Voltage - Supply	-	5.5 V
Voltage - Supply	-	3 V

RF TXRX MODULE 4 CHAN SMD

Part	Antenna Type	Voltage - Supply [Max]	Voltage - Supply [Min]	Data Rate	Package / Case	Utilized IC / Part	Modulation	Power - Output	Serial Interfaces	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Sensitivity	Supplied Contents	Type	For Use With/Related Products
Analog Devices Inc./Maxim Integrated MAX11947GTP+	Antenna Not Included	5.5 V	3 V	115.2 kbps	20-WFQFN Exposed Pad	MAX11947	OOK	7 dBm	SPI	-40 °C	105 ░C	Surface Mount	-20.5 dBm
Analog Devices Inc./Maxim Integrated MAX11947EVKIT#														Board(s)	Modem	MAX11947

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 270.63

General part information

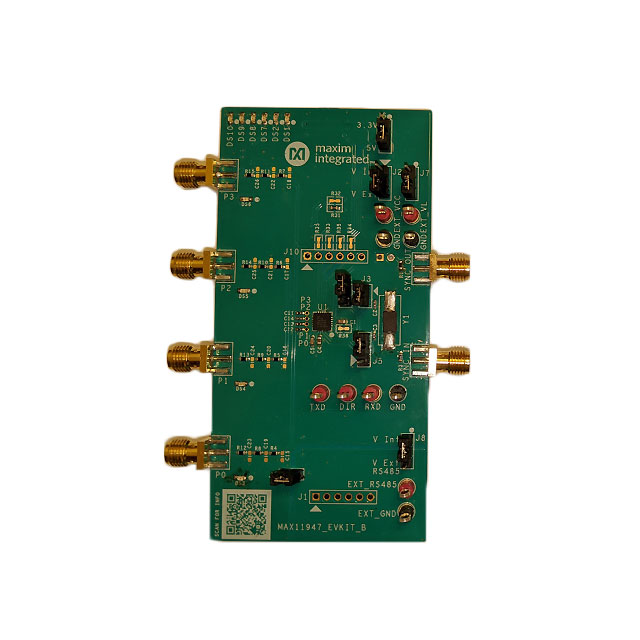

- MAX11947 Modem Evaluation Board

Technical documentation and resources

No documents available
