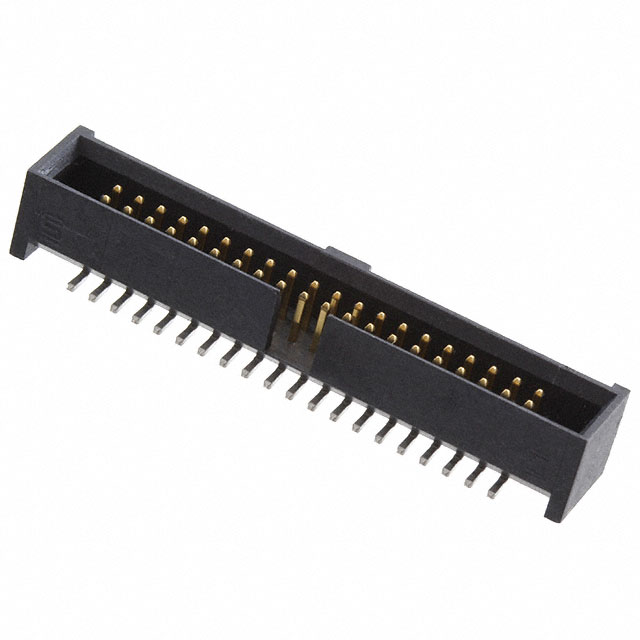

SHF-120-01-L-D-SM
ActiveSamtec Inc.
CONN HEADER SMD 40POS 1.27MM
Deep-Dive with AI
Search across all available documentation for this part.
SHF-120-01-L-D-SM
ActiveSamtec Inc.
CONN HEADER SMD 40POS 1.27MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SHF-120-01-L-D-SM |
|---|---|
| Connector Type | Header |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | 10 çin |
| Contact Finish Thickness - Mating | 0.25 çm |
| Contact Length - Mating | 3.05 mm |
| Contact Length - Mating | 0.12 in |
| Contact Material | Phosphor Bronze |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Current Rating (Amps) | 3 A |
| Fastening Type | Push-Pull |
| Features | Keying Slot |
| Insulation Color | Black |
| Insulation Height | 5.33 mm |
| Insulation Height | 0.21 in |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Surface Mount |
| Number of Positions | 40 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pitch - Mating | 0.05 in |
| Pitch - Mating | 1.27 mm |
| Row Spacing - Mating | 0.05 in |
| Row Spacing - Mating | 1.27 mm |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Cable/Wire |
| Termination | Solder |
SHF-120 Series
| Part | Insulation Color | Current Rating (Amps) | Number of Rows | Number of Positions | Fastening Type | Number of Positions Loaded | Shrouding | Material Flammability Rating | Contact Type | Termination | Pitch - Mating | Pitch - Mating | Insulation Material | Contact Finish - Post | Contact Finish - Mating | Contact Material | Insulation Height | Insulation Height | Connector Type | Mounting Type | Contact Length - Post [x] | Contact Length - Post | Operating Temperature [Min] | Operating Temperature [Max] | Contact Shape | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Row Spacing - Mating | Row Spacing - Mating | Features | Style | Contact Length - Mating | Contact Length - Mating | Contact Length - Post |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Samtec Inc. | Black | 3 A | 2 | 40 | Push-Pull | All | Shrouded - 4 Wall | UL94 V-0 | Male Pin | Solder | 0.05 in | 1.27 mm | Liquid Crystal Polymer (LCP) | Tin | Gold | Phosphor Bronze | 5.33 mm | 0.21 in | Header | Through Hole | 0.075 in | 1.91 mm | -55 °C | 125 °C | Square | 10 çin | 0.25 çm | 0.05 in | 1.27 mm | Keying Slot | Board to Cable/Wire | 3.05 mm | 0.12 in | |
Samtec Inc. | Black | 3 A | 2 | 40 | Push-Pull | All | Shrouded - 4 Wall | UL94 V-0 | Male Pin | Solder | 0.05 in | 1.27 mm | Liquid Crystal Polymer (LCP) | Tin | Gold | Phosphor Bronze | 5.33 mm | 0.21 in | Header | Surface Mount | -55 °C | 125 °C | Square | 0.05 in | 1.27 mm | Board Lock Keying Slot | Board to Cable/Wire | 3.05 mm | 0.12 in | |||||
Samtec Inc. | Black | 3 A | 2 | 40 | Push-Pull | All | Shrouded - 4 Wall | UL94 V-0 | Male Pin | Solder | 0.05 in | 1.27 mm | Liquid Crystal Polymer (LCP) | Tin | Gold | Phosphor Bronze | 5.33 mm | 0.21 in | Header | Surface Mount | -55 °C | 125 °C | Square | 0.05 in | 1.27 mm | Board Lock Keying Slot Pick and Place | Board to Cable/Wire | 3.05 mm | 0.12 in | |||||
Samtec Inc. | Black | 3 A | 2 | 40 | Push-Pull | All | Shrouded - 4 Wall | UL94 V-0 | Male Pin | Solder | 0.05 in | 1.27 mm | Liquid Crystal Polymer (LCP) | Tin | Gold | Phosphor Bronze | 5.33 mm | 0.21 in | Header | Surface Mount | -55 °C | 125 °C | Square | 10 çin | 0.25 çm | 0.05 in | 1.27 mm | Board Lock Keying Slot | Board to Cable/Wire | 3.05 mm | 0.12 in | |||
Samtec Inc. | Black | 3 A | 2 | 40 | Push-Pull | All | Shrouded - 4 Wall | UL94 V-0 | Male Pin | Solder | 0.05 in | 1.27 mm | Liquid Crystal Polymer (LCP) | Tin | Gold | Phosphor Bronze | 5.6 mm | 0.22 in | Header | Through Hole Right Angle | 2.16 mm | -55 °C | 125 °C | Square | 10 çin | 0.25 çm | 0.05 in | 1.27 mm | Keying Slot | Board to Cable/Wire | 3.05 mm | 0.12 in | 0.085 in | |
Samtec Inc. | Black | 3 A | 2 | 40 | Push-Pull | All | Shrouded - 4 Wall | UL94 V-0 | Male Pin | Solder | 0.05 in | 1.27 mm | Liquid Crystal Polymer (LCP) | Tin | Gold | Phosphor Bronze | 5.6 mm | 0.22 in | Header | Through Hole Right Angle | 2.16 mm | -55 °C | 125 °C | Square | 0.05 in | 1.27 mm | Keying Slot | Board to Cable/Wire | 3.05 mm | 0.12 in | 0.085 in | |||
Samtec Inc. | Black | 3 A | 2 | 40 | Push-Pull | All | Shrouded - 4 Wall | UL94 V-0 | Male Pin | Solder | 0.05 in | 1.27 mm | Liquid Crystal Polymer (LCP) | Tin | Gold | Phosphor Bronze | 5.33 mm | 0.21 in | Header | Through Hole | 0.075 in | 1.91 mm | -55 °C | 125 °C | Square | 10 çin | 0.25 çm | 0.05 in | 1.27 mm | Board Lock Keying Slot | Board to Cable/Wire | 3.05 mm | 0.12 in | |
Samtec Inc. | Black | 3 A | 2 | 40 | Push-Pull | All | Shrouded - 4 Wall | UL94 V-0 | Male Pin | Solder | 0.05 in | 1.27 mm | Liquid Crystal Polymer (LCP) | Tin | Gold | Phosphor Bronze | 5.6 mm | 0.22 in | Header | Through Hole Right Angle | 2.16 mm | -55 °C | 125 °C | Square | 0.05 in | 1.27 mm | Keying Slot | Board to Cable/Wire | 3.05 mm | 0.12 in | 0.085 in | |||
Samtec Inc. | Black | 3 A | 2 | 40 | Push-Pull | All | Shrouded - 4 Wall | UL94 V-0 | Male Pin | Solder | 0.05 in | 1.27 mm | Liquid Crystal Polymer (LCP) | Tin | Gold | Phosphor Bronze | 5.33 mm | 0.21 in | Header | Surface Mount | -55 °C | 125 °C | Square | 10 çin | 0.25 çm | 0.05 in | 1.27 mm | Keying Slot | Board to Cable/Wire | 3.05 mm | 0.12 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 4.67 | |
| 25 | $ 4.22 | |||
| 50 | $ 3.92 | |||
| 100 | $ 3.91 | |||
Description
General part information
SHF-120 Series
Connector Header Surface Mount 40 position 0.050" (1.27mm)
