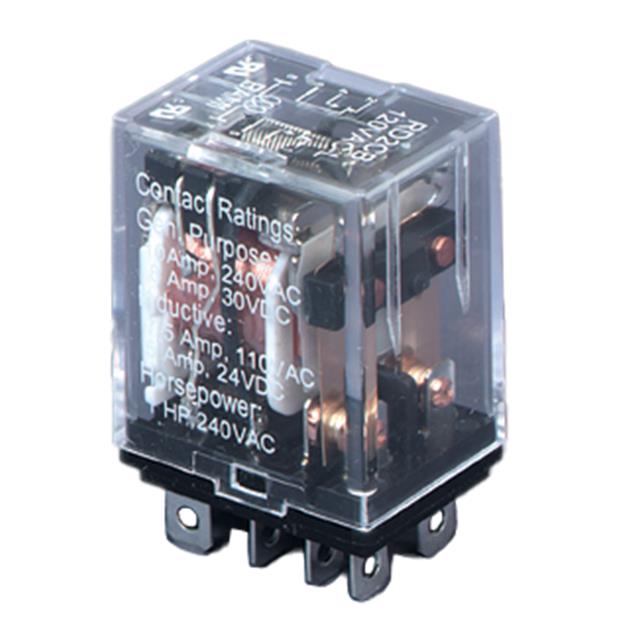

RD2CB-24VDC-L

Active

R-K Electronics, Inc.

RELAY GEN PURPOSE DPDT 10A 24V

Search across all available documentation for this part.

Active

R-K Electronics, Inc.

RELAY GEN PURPOSE DPDT 10A 24V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

General Purpose Relay DPDT (2 Form C) 24VDC Coil Socketable

Technical documentation and resources

Parameters and characteristics commom to parts in this series

RELAY GEN PURPOSE DPDT 10A 24V

Part	Must Operate Voltage	Contact Rating (Current)	Mounting Type	Features	Contact Material	Contact Form	Relay Type	Coil Type	Operating Temperature [Min]	Operating Temperature [Max]	Termination Style	Switching Voltage	Must Release Voltage	Coil Voltage	Operate Time	Coil Resistance	Coil Current
R-K Electronics, Inc. RD2CB-24VAC-L	18 VAC	10 A	Socketable	Lighted Indicator	Silver Cadmium Oxide (AgCdO)	DPDT (2 Form C)	General Purpose	Non Latching	-10 °C	40 °C	Plug In	30 VDC, 240 VAC	7.2 VAC	24 VAC	20 ms
R-K Electronics, Inc. RD2CB-24VAC	18 VAC	10 A	Socketable	Lighted Indicator	Silver Cadmium Oxide (AgCdO)	DPDT (2 Form C)	General Purpose	Non Latching	-10 °C	40 °C	Plug In	30 VDC, 240 VAC	7.2 VAC	24 VAC	20 ms
R-K Electronics, Inc. RD2CB-120VAC	90 VAC	10 A	Socketable	Lighted Indicator	Silver Cadmium Oxide (AgCdO)	DPDT (2 Form C)	General Purpose	Non Latching	-10 °C	40 °C	Plug In	30 VDC, 240 VAC	36 VAC	120 VAC	20 ms
R-K Electronics, Inc. RD2CB-24OVAC	180 VAC	10 A	Socketable	Lighted Indicator	Silver Cadmium Oxide (AgCdO)	DPDT (2 Form C)	General Purpose	Non Latching	-10 °C	40 °C	Plug In	30 VDC, 240 VAC	72 VAC/DC	240 VAC	20 ms
R-K Electronics, Inc. RD2CB-24VDC-L	18 VDC	10 A	Socketable	Lighted Indicator	Silver Cadmium Oxide (AgCdO)	DPDT (2 Form C)	General Purpose	Non Latching	-10 °C	40 °C	Plug In	30 VDC, 240 VAC	2.4 VDC	24 VDC	20 ms	576 Ohms	41.7 mA
R-K Electronics, Inc. RD2CB-120VAC-L	90 VAC	10 A	Socketable	Lighted Indicator	Silver Cadmium Oxide (AgCdO)	DPDT (2 Form C)	General Purpose	Non Latching	-10 °C	40 °C	Plug In	30 VDC, 240 VAC	36 VAC	120 VAC	20 ms
