RC2010FK-07120RP

Active

YAGEO

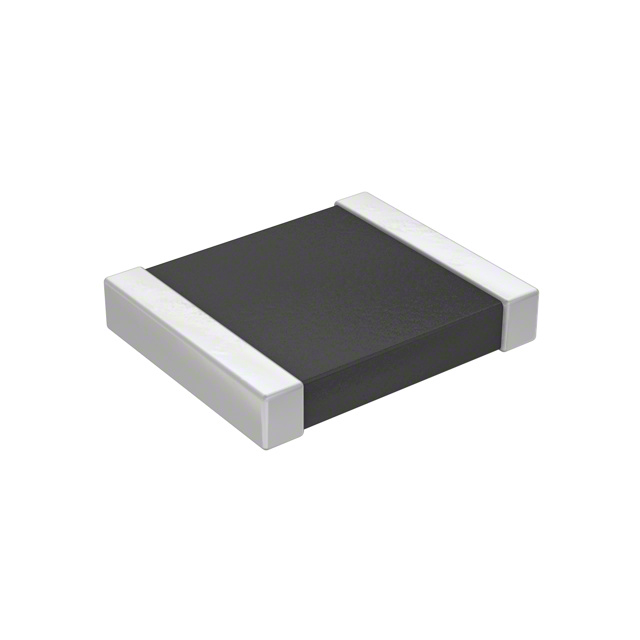

RES 120 OHM 1% 3/4W 2010

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Chip Resistor Packing +3

RC2010FK-07120RP

Active

YAGEO

RES 120 OHM 1% 3/4W 2010

Deep-Dive with AI

DocumentsDatasheet Chip Resistor Packing +3

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	RC2010FK-07120RP	RC2010 Series

Composition	Thick Film	Thick Film
Height - Seated (Max) [Max]	0.026 in	0.026 in
Height - Seated (Max) [Max]	0.65 mm	0.65 mm
Number of Terminations	2	2
Operating Temperature [Max]	155 °C	155 °C
Operating Temperature [Min]	-55 °C	-55 °C
Package / Case	2010 (5025 Metric)	2010 (5025 Metric)
Power (Watts)	0.75 W	0.75 W
Power (Watts)	0.75 W	0.75 W
Ratings	7C1, 100% Pb-Free, RoHS w/out Exemption	7C1, 100% Pb-Free, RoHS w/out Exemption
Resistance	120 Ohms	2.2 - 120 Ohms
Size / Dimension [x]	0.197 in	0.197 in
Size / Dimension [x]	5 mm	5 mm
Size / Dimension [y]	0.098 in	0.098 in
Size / Dimension [y]	2.5 mm	2.5 mm
Supplier Device Package	2010	2010
Temperature Coefficient	100 ppm/°C	100 - 200 ppm/°C
Tolerance	1 %	1 %

RC2010 Series

RES 51 OHM 1% 3/4W 2010

Part	Package / Case	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Supplier Device Package	Tolerance	Composition	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Temperature Coefficient	Ratings	Power (Watts)	Power (Watts)	Number of Terminations	Resistance	Operating Temperature [Max]	Operating Temperature [Min]
YAGEO RC2010FK-0751RP	2010 (5025 Metric)	0.197 in	0.098 in	5 mm	2.5 mm	2010	1 %	Thick Film	0.026 in	0.65 mm	100 ppm/°C	100% Pb-Free, 7C1, RoHS w/out Exemption	0.75 W	0.75 W	2	51 Ohms	155 °C	-55 °C
YAGEO RC2010FK-072K49P	2010 (5025 Metric)	0.197 in	0.098 in	5 mm	2.5 mm	2010	1 %	Thick Film	0.026 in	0.65 mm	100 ppm/°C	100% Pb-Free, 7C1, RoHS w/out Exemption	0.75 W	0.75 W	2	2.49 kOhms	155 °C	-55 °C
YAGEO RC2010FK-07120RP	2010 (5025 Metric)	0.197 in	0.098 in	5 mm	2.5 mm	2010	1 %	Thick Film	0.026 in	0.65 mm	100 ppm/°C	100% Pb-Free, 7C1, RoHS w/out Exemption	0.75 W	0.75 W	2	120 Ohms	155 °C	-55 °C
YAGEO RC2010FK-072R2P	2010 (5025 Metric)	0.197 in	0.098 in	5 mm	2.5 mm	2010	1 %	Thick Film	0.026 in	0.65 mm	200 ppm/°C	100% Pb-Free, 7C1, RoHS w/out Exemption	0.75 W	0.75 W	2	2.2 Ohms	155 °C	-55 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	4000	$ 0.10

Description

General part information

RC2010 Series

120 Ohms ±1% 0.75W, 3/4W Chip Resistor 2010 (5025 Metric) Thick Film
