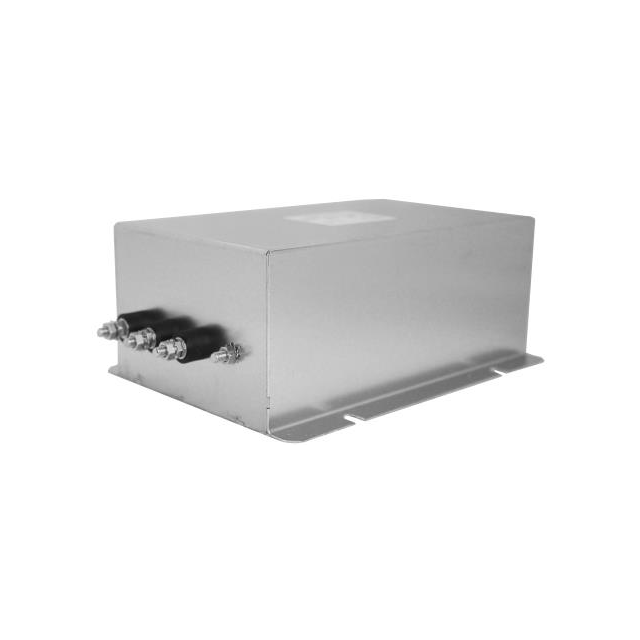

RP300-300-100-S
ActiveAstrodyne TDI
LINE FILTER 480VAC 300A CHASSIS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RP300-300-100-S
ActiveAstrodyne TDI
LINE FILTER 480VAC 300A CHASSIS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RP300-300-100-S |
|---|---|
| Applications | General Purpose |
| Approval Agency | SEMKO, cURus, ENEC, CE |
| Configuration | Single Stage |
| Current | 300 A |
| Filter Type | Three Phase (Delta) |
| Frequency - Operating [Max] | 60 Hz |
| Frequency - Operating [Min] | 50 Hz |
| Mounting Type | Chassis Mount |
| Operating Temperature [custom] | 100 °C, -25 °C |
| Termination Style | Threaded Post (M12) |
| Voltage - Rated AC | 480 V |
| Voltage - Rated AC (Phase to Ground/Neutral) | 3.5 kV |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 969.76 | |
Description
General part information
RP300-300-100-S
Three Phase (Delta) EMC/EMI Line Filter 300 A 480V 50/60Hz Single Stage Threaded Post (M12)
