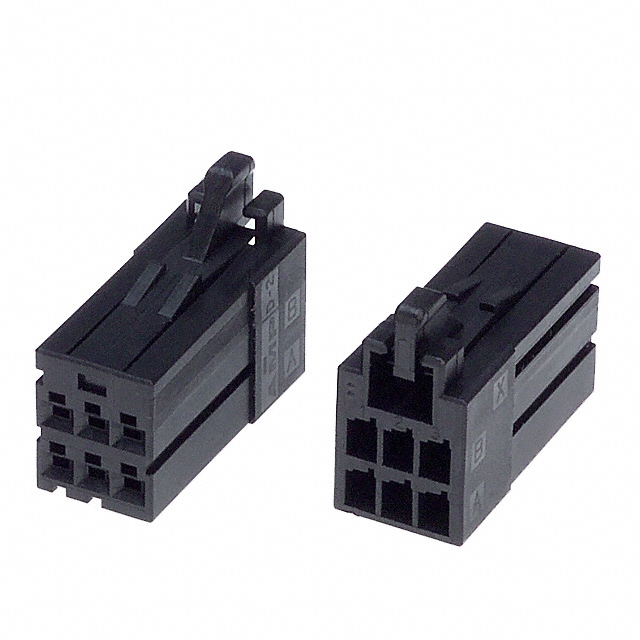

1-1318119-3

Active

TE Connectivity AMP Connectors

CONN RCPT HSG 6POS 2.50MM

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN RCPT HSG 6POS 2.50MM

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1-1318119-3	1318119 Series

Color	Black	Black, Natural
Connector Type	Receptacle	Receptacle
Contact Termination	Crimp	Crimp
Contact Type	Female Socket	Female Socket
Fastening Type	Latch Lock	Latch Lock
Insulation Material	Thermoplastic, Glass Filled, Polyester	Thermoplastic, Glass Filled, Polyester
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Note	Contacts Not Included	Contacts Not Included
Number of Positions	6	6
Number of Rows	2	2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-55 °C	-55 °C
Pitch [x]	0.098 in	0.098 in
Pitch [x]	2.5 mm	2.5 mm
Row Spacing	0.148 in	0.148 in
Row Spacing	3.75 mm	3.75 mm

CONN RCPT HSG 6POS 2.50MM

Part	Contact Type	Note	Fastening Type	Color	Number of Positions	Connector Type	Pitch [x]	Pitch [x]	Operating Temperature [Max]	Operating Temperature [Min]	Row Spacing	Row Spacing	Mounting Type	Number of Rows	Insulation Material	Contact Termination
TE Connectivity AMP Connectors 1-1318119-3	Female Socket	Contacts Not Included	Latch Lock	Black	6	Receptacle	0.098 in	2.5 mm	105 ░C	-55 °C	0.148 in	3.75 mm	Free Hanging (In-Line)	2	Glass Filled, Polyester, Thermoplastic	Crimp
TE Connectivity AMP Connectors 9-1318119-3	Female Socket	Contacts Not Included	Latch Lock	Natural	6	Receptacle	0.098 in	2.5 mm	105 ░C	-55 °C	0.148 in	3.75 mm	Free Hanging (In-Line)	2	Glass Filled, Polyester, Thermoplastic	Crimp

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

6 Rectangular Connectors - Housings Receptacle Black 0.098" (2.50mm)
