WLAN DUAL BAND ANTENNA 2.4 / 5 GHZ
2118899-1
ActiveTE Connectivity AMP Connectors
WLAN DUAL BAND ANTENNA 2.4 / 5 GHZ
Description
General part information
2118899 Series

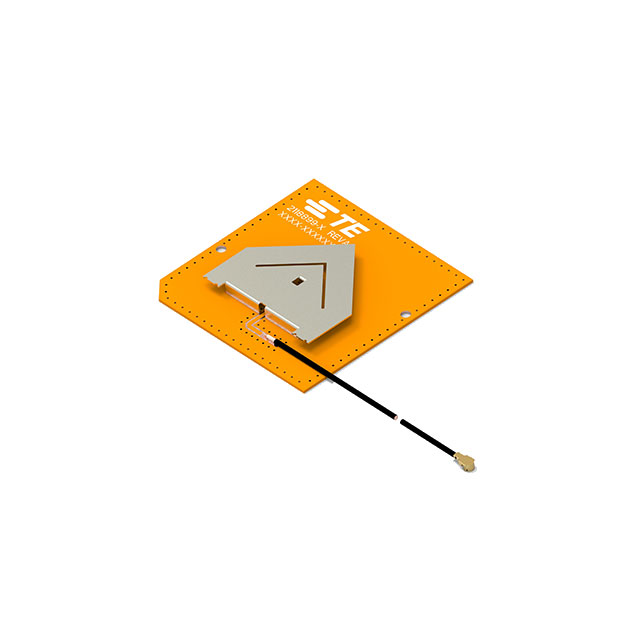

PCB Antenna, Dual Band, Wi-Fi, Internal/Embedded Mount, Connector Mount, MHF / MHF1 / U.FL, Omnidirectional, Single Port, > 6 dBi Peak Gain
Technical Specifications
Parameters and characteristics for this part
| Specification | 2118899-1 |
|---|---|
| Antenna Type | PCB Trace |
| Applications | Wi-Fi, Bluetooth, Zigbee™ |
| Features | 278mm, Cable |
| Frequency (Band) | 5.5125 GHz |
| Frequency (Center) | 2.4425 GHz |
| Frequency Group | SHF, UHF |
| Frequency Group Maximum (UHF) | 3 GHz |
| Frequency Group Minimum (SHF) | 4 GHz |
| Frequency Group Minimum (UHF) | 2 GHz |
| Frequency Range (Band 1) Maximum | 2.485 GHz |
| Frequency Range (Band 1) Minimum | 2.4 GHz |
| Frequency Range (Band 2) Maximum | 5.875 GHz |
| Frequency Range (Band 2) Minimum | 5.15 GHz |
| Gain | 6 dBi |
| Height (Max) | 0.15 in |
| Mounting Type | Connector Mount |
| Number of Bands | 2 |
| RF Family/Standard | 802.15.4, Bluetooth, WiFi |
| Termination | MHF |
| VSWR | 2 |
