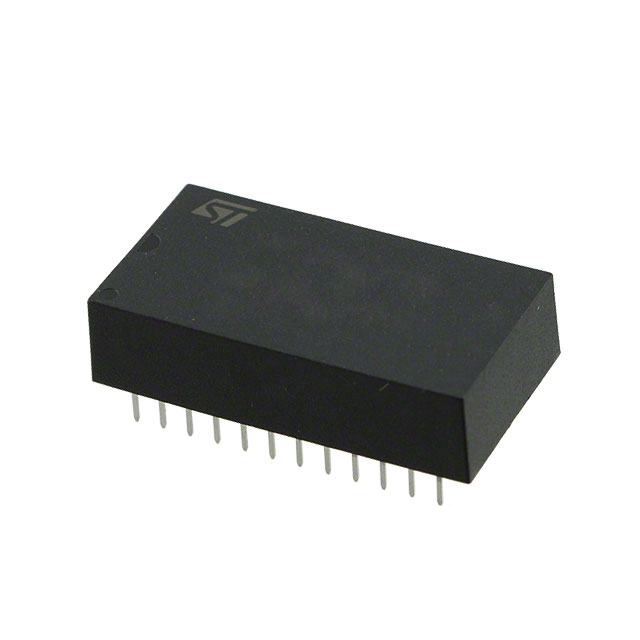

M48Z02-200PC1
ObsoleteIC NVSRAM 16KBIT PAR 24PCDIP
Deep-Dive with AI
Search across all available documentation for this part.
M48Z02-200PC1
ObsoleteIC NVSRAM 16KBIT PAR 24PCDIP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | M48Z02-200PC1 |
|---|---|
| Access Time | 200 ns |
| Memory Format | NVSRAM |
| Memory Interface | Parallel |
| Memory Organization | 2K x 8 |
| Memory Size | 16 Kbit |
| Memory Type | Non-Volatile |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | 0 °C |
| Package / Case | 0.6 in |
| Package / Case | 24-DIP Module |
| Package / Case | 15.24 mm |
| Supplier Device Package | 24-PCDIP, CAPHAT® |
| Technology | NVSRAM (Non-Volatile SRAM) |
| Voltage - Supply [Max] | 5.5 V |
| Voltage - Supply [Min] | 4.75 V |
| Write Cycle Time - Word, Page | 200 ns |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
M48Z02 Series
The M48Z02/12 ZEROPOWER®RAM is a 2 K x 8 non-volatile static RAM which is pin and function compatible with the DS1220.
A special 24-pin, 600 mil DIP CAPHAT™ package houses the M48Z02/12 silicon with a long-life lithium button cell to form a highly integrated battery-backed memory solution.
The M48Z02/12 button cell has sufficient capacity and storage life to maintain data functionality for an accumulated time period of at least 10 years in the absence of power over commercial operating temperature range.
