Specification	AP-146/4-4

Applications	Video, Military, Audio
Backshell Material	Aluminum
Cable Opening	0.29 in
Color	Black
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Gold
Contact Material	Brass
Current Rating	0.5 A
Fastening Type	Bayonet Lock
Insert Material	Diallyl Phthalate, DAP
Mounting Type	Free Hanging (In-Line)
Number of Positions	6
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-55 °C
Orientation	Keyed
Plating	Anodized
Primary Material	Plastic
Qualification	MIL-DTL-55116
Shell Material	Polyamide (PA), Nylon, Stainless Steel, Glass Filled
Termination	Solder Cup
Voltage Rating	60 V

AP-146 Series

Part	Primary Material	Fastening Type	Mounting Type	Cable Opening	Number of Positions	Connector Type	Contact Finish - Mating	Qualification	Voltage Rating	Operating Temperature (Min)	Operating Temperature (Max)	Orientation	Termination	Color	Shell Material	Current Rating	Plating	Backshell Material	Contact Material	Applications	Insert Material	Shell Finish	Features	Shielding
McGill Microwave Systems AP-146/4-4	Plastic	Bayonet Lock	Free Hanging (In-Line)	0.29 in	6	Female Sockets Plug	Gold	MIL-DTL-55116	60 V	-55 °C	85 °C	Keyed	Solder Cup	Black	Glass Filled Nylon Polyamide (PA) Stainless Steel	0.5 A	Anodized	Aluminum	Brass	Audio Military Video	DAP Diallyl Phthalate
McGill Microwave Systems AP-146MS	Metal	Bayonet Lock	Free Hanging (In-Line)		6	Female Sockets Plug	Gold		60 V	-55 °C	85 °C	Keyed	Solder Cup	Black	Stainless Steel	0.5 A			Brass	Audio Communication Systems Military Video	Thermoplastic	Passivated	Backshell Coupling Nut Strain Relief	Unshielded
McGill Microwave Systems AP-146MNB	Metal	Bayonet Lock	Free Hanging (In-Line)		6	Female Sockets Plug	Gold		60 V	-55 °C	85 °C	Keyed	Solder Cup	Black	Stainless Steel	0.5 A			Brass	Audio Communication Systems Military Video	Thermoplastic	Passivated	Backshell Coupling Nut Strain Relief	Unshielded

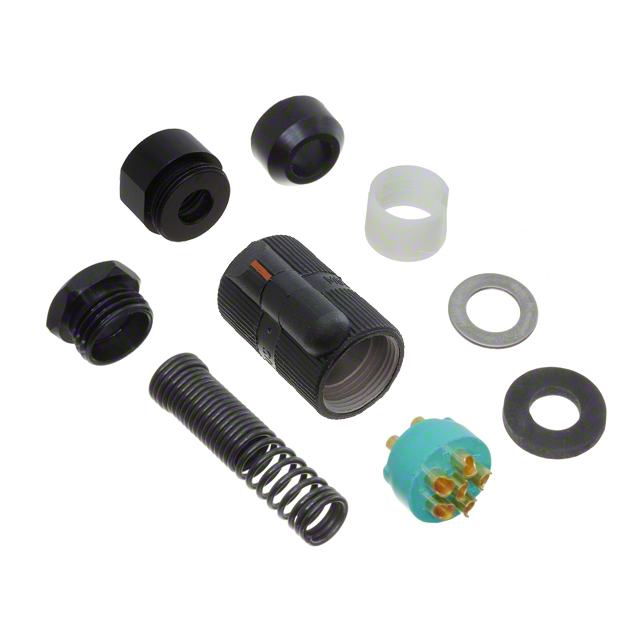

McGill Microwave Systems AP-146/4-5	Plastic	Bayonet Lock	Free Hanging (In-Line)	0.32 in	6	Female Sockets Plug	Gold	MIL-DTL-55116	60 V	-55 °C	85 °C	Keyed	Solder Cup	Black	Glass Filled Nylon Polyamide (PA) Stainless Steel	0.5 A	Anodized	Aluminum	Brass	Audio Military Video	DAP Diallyl Phthalate
McGill Microwave Systems AP-146M/1	Metal	Bayonet Lock	Free Hanging (In-Line)	0.165 in	6	Female Sockets Plug	Gold		60 V	-55 °C	85 °C	Keyed	Solder Cup	Black Silver	Neoprene Stainless Steel	0.5 A	Anodized	Aluminum Alloy	Brass	Audio Communication Systems Military Video	DAP Diallyl Phthalate		Backshell Coupling Nut Strain Relief	Unshielded
McGill Microwave Systems AP-146M/3	Metal	Bayonet Lock	Free Hanging (In-Line)	0.32 in	6	Female Sockets Plug	Gold	MIL-DTL-55116	60 V	-55 °C	85 °C	Keyed	Solder Cup	Black	Neoprene Stainless Steel	0.5 A	Anodized	Aluminum	Brass	Audio Military Video	DAP Diallyl Phthalate
McGill Microwave Systems AP-146SS/4-1	Metal	Bayonet Lock	Free Hanging (In-Line)	0.165 in	6	Female Sockets Plug	Gold		60 V	-55 °C	85 °C	Keyed	Solder Cup	Black	Stainless Steel	0.5 A			Brass	Audio Communication Systems Military Video	Thermoplastic	Passivated	Backshell Coupling Nut Strain Relief	Unshielded
