Description

General part information

627-009 Series

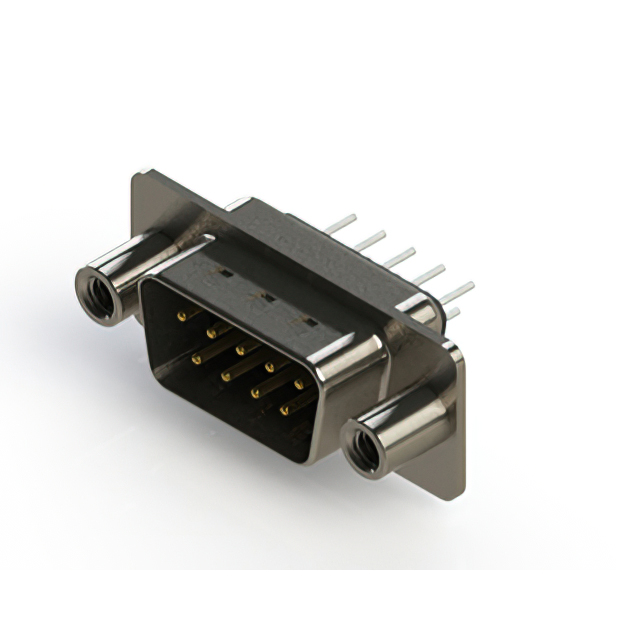

9 Position D-Sub Plug, Male Pins Connector

Technical Specifications

Parameters and characteristics for this part

Specification	627-009-620-048

Color	Black
Connector Layout	DE, E
Connector Style	D-Sub
Connector Type	Male Pins, Plug
Contact Finish	Gold
Contact Finish Thickness	30 µin
Contact Material	Brass
Contact Type	Signal
Current Rating (Per Contact)	3 A
Dielectric Material	Polyester Thermoplastic
Features	Shielded
Finish	Nickel Plated
Flange Feature	Board Side (4-40)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	9
Number of Rows	2
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-55 °C
Shell Material	Steel
Shell Size	1
Termination	Solder

627-009 Series

...

Part	Mounting Type	Shell Size	Connector Layout	Connector Style	Connector Type	Contact Finish Thickness	Contact Finish Thickness (string set options)	Contact Finish Thickness	Flange Feature	Contact Type	Number of Rows	Contact Finish	Features	Termination	Shell Material	Finish	Number of Positions	Current Rating (Per Contact)	Material Flammability Rating	Color	Contact Material	Dielectric Material	Operating Temperature (Min)	Operating Temperature (Max)
EDAC Inc. 627-009-221-057	Through Hole	1	DE E	D-Sub	Male Pins Plug	0	Flash	Flash	Board Side (4-40)	Signal	2	Gold	Board Lock Grounding Indents Shielded	Solder	Steel	Nickel Plated	9	3 A	UL94 V-0	Black	Brass	Polyester Thermoplastic	-55 °C	85 °C
EDAC Inc. 627-009-620-012	Through Hole	1	DE E	D-Sub	Male Pins Plug	30 µin			Board Side (4-40)	Signal	2	Gold	Grounding Indents Shielded	Solder	Steel	Nickel Plated	9	3 A	UL94 V-0	Black	Brass	Polyester Thermoplastic	-55 °C	85 °C
EDAC Inc. 627-009-621-053	Through Hole	1	DE E	D-Sub	Male Pins Plug	30 µin			Board Side (4-40)	Signal	2	Gold	Grounding Indents Shielded	Solder	Steel	Nickel Plated	9	3 A	UL94 V-0	Black	Brass	Polyester Thermoplastic	-55 °C	85 °C
EDAC Inc. 627-009-321-276	Through Hole	1	DE E	D-Sub	Male Pins Plug	15 µin			Board Side (4-40)	Signal	2	Gold	Board Lock Grounding Indents Shielded	Solder	Steel	Tin Plated	9	3 A	UL94 V-0	Black	Brass	Polyester Thermoplastic	-55 °C	85 °C
EDAC Inc. 627-009-620-267	Through Hole	1	DE E	D-Sub	Male Pins Plug	30 µin			Board Side (4-40)	Signal	2	Gold	Board Lock Grounding Indents Shielded	Solder	Steel	Tin Plated	9	3 A	UL94 V-0	Black	Brass	Polyester Thermoplastic	-55 °C	85 °C
EDAC Inc. 627-009-224-216	Through Hole	1	DE E	D-Sub	Male Pins Plug	0	Flash	Flash	Board Side (4-40)	Signal	2	Gold	Board Lock Grounding Indents Shielded	Solder	Steel	Tin Plated	9	3 A	UL94 V-0	Black	Brass	Polyester Thermoplastic	-55 °C	85 °C
EDAC Inc. 627-009-620-048	Through Hole	1	DE E	D-Sub	Male Pins Plug	30 µin			Board Side (4-40)	Signal	2	Gold	Shielded	Solder	Steel	Nickel Plated	9	3 A	UL94 V-0	Black	Brass	Polyester Thermoplastic	-55 °C	85 °C
EDAC Inc. 627-009-226-016	Through Hole	1	DE E	D-Sub	Male Pins Plug	0	Flash	Flash	Board Side (4-40)	Signal	2	Gold	Board Lock Grounding Indents Shielded	Press-Fit	Steel	Nickel Plated	9	3 A	UL94 V-0	Black	Brass	Polyester Thermoplastic	-55 °C	85 °C
EDAC Inc. 627-009-681-276	Through Hole	1	DE E	D-Sub	Male Pins Plug	30 µin			Board Side (4-40)	Signal	2	Gold	Board Lock Grounding Indents Shielded	Solder	Steel	Tin Plated	9	3 A	UL94 V-0	Black	Brass	Polyester Thermoplastic	-55 °C	85 °C
EDAC Inc. 627-009-321-279	Through Hole	1	DE E	D-Sub	Male Pins Plug	15 µin			Board Side (4-40)	Signal	2	Gold	Grounding Indents Shielded	Solder	Steel	Tin Plated	9	3 A	UL94 V-0	Black	Brass	Polyester Thermoplastic	-55 °C	85 °C
