STPS2L60AFN

Obsolete

STMicroelectronics

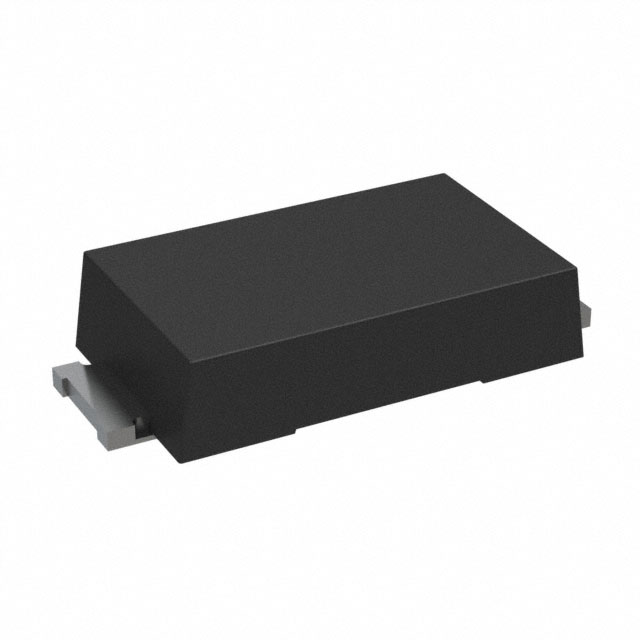

DIODE SCHOTTKY 60V 2A SMAFLAT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

STPS2L60AFN

Obsolete

STMicroelectronics

DIODE SCHOTTKY 60V 2A SMAFLAT

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	STPS2L60AFN

Current - Average Rectified (Io)	2 A
Current - Reverse Leakage @ Vr	100 µA
Mounting Type	Surface Mount
Operating Temperature - Junction	150 ¯C
Package / Case	SMA Flat Leads, DO-221AC
Speed	200 mA, 500 ns
Supplier Device Package	SMAflat Notch
Technology	Schottky
Voltage - DC Reverse (Vr) (Max) [Max]	60 V
Voltage - Forward (Vf) (Max) @ If	600 mV

STPS2H100-Y Series

Automotive 100 V, 2 A SMA SMB Power Schottky Rectifier

Part	Operating Temperature - Junction	Voltage - Forward (Vf) (Max) @ If	Current - Average Rectified (Io)	Voltage - DC Reverse (Vr) (Max) [Max]	Speed	Package / Case	Technology	Mounting Type	Supplier Device Package	Current - Reverse Leakage @ Vr	Operating Temperature - Junction [Min]	Operating Temperature - Junction [Max]	Grade	Qualification
STMicroelectronics STPS2H100AFN	175 °C	790 mV	2 A	100 V	200 mA 500 ns	DO-221AC SMA Flat Leads	Schottky	Surface Mount	SMAflat Notch	1 µA
STMicroelectronics STPS2H100AY		790 mV	2 A	100 V	200 mA 500 ns	DO-214AC SMA	Schottky	Surface Mount	DO-214AC (SMA)	1 µA	-40 °C	175 ░C	Automotive
STMicroelectronics STPS2L25AFN	150 ¯C	450 mV	2 A	25 V	200 mA 500 ns	DO-221AC SMA Flat Leads	Schottky	Surface Mount	SMAflat Notch	90 µA
STMicroelectronics STPS2H100AFY		790 mV	2 A	100 V	200 mA 500 ns	SOD-128	Schottky	Surface Mount	SOD128Flat	1 µA	-40 °C	175 ░C	Automotive	AEC-Q101
STMicroelectronics STPS2L30AFN	150 ¯C	450 mV	2 A	30 V	200 mA 500 ns	DO-221AC SMA Flat Leads	Schottky	Surface Mount	SMAflat Notch	200 µA
STMicroelectronics STPS2L60AFN	150 ¯C	600 mV	2 A	60 V	200 mA 500 ns	DO-221AC SMA Flat Leads	Schottky	Surface Mount	SMAflat Notch	100 µA
STMicroelectronics STPS2L40AFN	150 ¯C	430 mV	2 A	40 V	200 mA 500 ns	DO-221AC SMA Flat Leads	Schottky	Surface Mount	SMAflat Notch	220 µA
