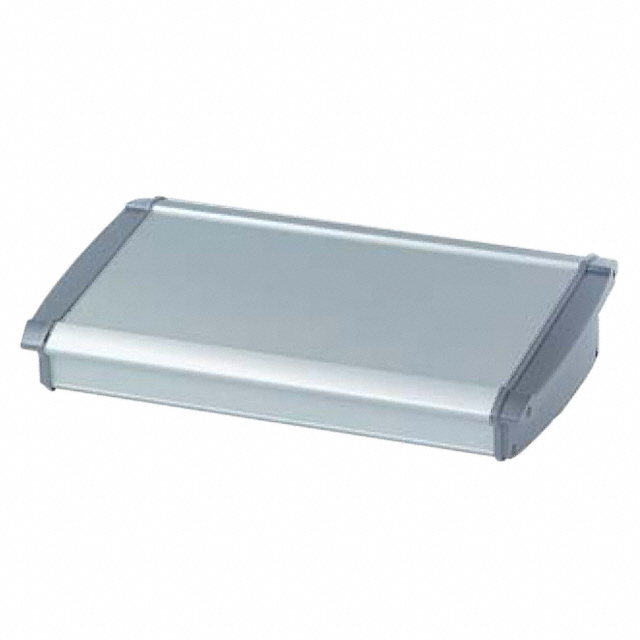

ATPH18650250SET

Active

Bopla Enclosures

BOX ALUM GRY/NAT 9.84"L X 7.24"W

Search across all available documentation for this part.

Active

Bopla Enclosures

BOX ALUM GRY/NAT 9.84"L X 7.24"W

Technical Specifications

Parameters and characteristics for this part

Specification	ATPH18650250SET

Area (L x W)	459 cm²
Area (L x W)	71.1 in²
Color	Gray, Natural
Container Type	Box
Design	Split Sides and End Panel(s)
Height [z]	68.2 mm
Height [z]	2.685 in
Material	Aluminum with Plastic, ABS Lids, Metal
Ratings	IP40
Size / Dimension [x]	9.843 "
Size / Dimension [x]	250 mm
Size / Dimension [y]	183.8 mm
Size / Dimension [y]	7.236 "
Thickness	0.078 in
Thickness	1.98 mm

BOX ALUM GRY/NAT 9.84"L X 7.24"W

Part	Height [z]	Height [z]	Ratings	Area (L x W)	Area (L x W)	Container Type	Thickness	Thickness	Design	Color	Material	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]
Bopla Enclosures ATPH18650250SET	68.2 mm	2.685 in	IP40	459 cm²	71.1 in²	Box	0.078 in	1.98 mm	Split Sides and End Panel(s)	Gray, Natural	ABS Lids, Aluminum with Plastic, Metal	183.8 mm	9.843 "	7.236 "	250 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Box Metal, Aluminum with Plastic, ABS Lids Gray, Natural Split Sides and End Panel(s) 9.843" L x 7.236" W (250.00mm x 183.80mm) X 2.685" (68.20mm)

Technical documentation and resources
