7382-4SG-3ES

Active

Conxall/Switchcraft

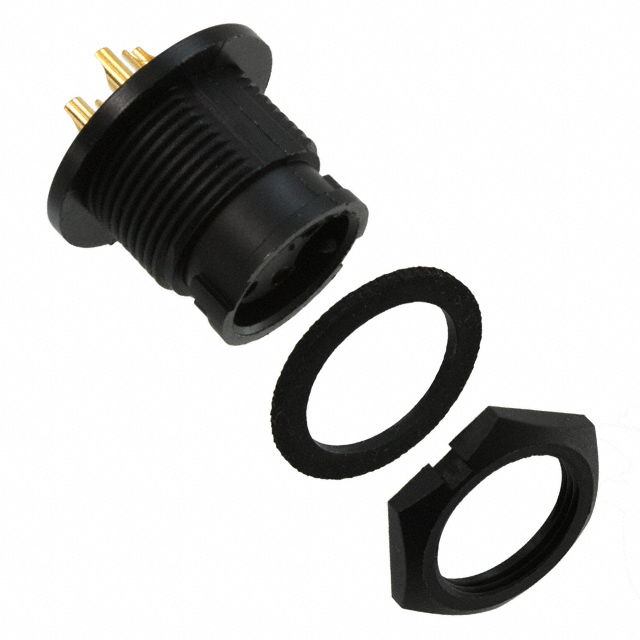

CONN RCPT FMALE 4P GOLD SLDR CUP

Search across all available documentation for this part.

Active

Conxall/Switchcraft

CONN RCPT FMALE 4P GOLD SLDR CUP

Technical Specifications

Parameters and characteristics for this part

Specification	7382-4SG-3ES

Applications	Automotive, Communication Systems, Instrumentation
Backshell Material, Plating	Polyamide (PA), Nylon
Color	Black
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Material	Brass
Current Rating (Amps)	Varies by Wire Gauge
Fastening Type	Bayonet Lock
Ingress Protection	Weathertight
Mounting Feature	Bulkhead - Front Side Nut
Number of Positions	4
Operating Temperature [Max]	115 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shielding	Unshielded
Voltage Rating	600 V

CONN RCPT FMALE 4P GOLD SLDR CUP

Part	Number of Positions	Fastening Type	Contact Material	Voltage Rating	Primary Material	Shielding	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Color	Orientation	Mounting Feature	Ingress Protection	Applications	Contact Finish - Mating	Backshell Material, Plating	Current Rating (Amps)
Conxall/Switchcraft 7382-4SG-3ES	4	Bayonet Lock	Brass	600 V	Plastic	Unshielded	Receptacle, Female Sockets	-40 °C	115 °C	Black	Keyed	Bulkhead - Front Side Nut	Weathertight	Automotive, Communication Systems, Instrumentation	Gold	Nylon, Polyamide (PA)	Varies by Wire Gauge

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 9.47

General part information

4 Position Circular Connector Receptacle, Female Sockets Solder Cup
