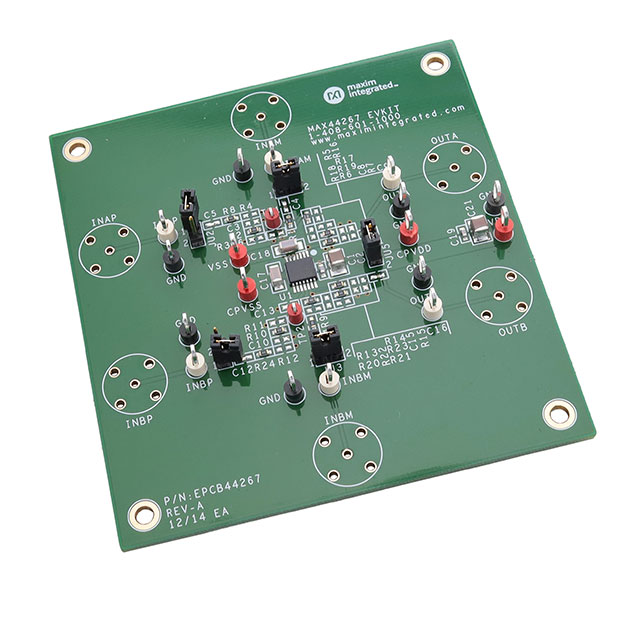

Specification	MAX44267EVKIT#

Amplifier Type	General Purpose, Standard (General Purpose)
Board Type	Fully Populated
Channels per IC (Count)	2
Channels per IC (Dual)	2
Channels per IC (Type)	Dual
Contents	Board
Current - Output / Channel	36 mA
Current - Supply (Main IC)	0.0024 mA
Gain Bandwidth Product	5 MHz
Output Type	Single-Ended
Slew Rate	3 V/µs
Supplied Contents	Board(s)
Supply Configuration	Dual, Single
Utilized IC / Part	MAX44267
Voltage - Supply (Single) Maximum	15 V
Voltage - Supply (Single) Minimum	2.25 V

MAX44267 Series

Part	Output Type	Current - Input Bias	Current - Supply	Gain Bandwidth Product	Current - Output / Channel	Slew Rate	Amplifier Type	Number of Circuits	Voltage - Supply Span (Max)	Operating Temperature (Max)	Operating Temperature (Min)	Voltage - Supply Span (Min)	Voltage - Input Offset	Package Width	Package Name	Package Length	Mounting Type	Current - Supply (Main IC)	Supplied Contents	Board Type	Utilized IC / Part	Channels per IC (Dual)	Channels per IC (Type)	Channels per IC (Count)	Supply Configuration	Voltage - Supply (Single) Maximum	Voltage - Supply (Single) Minimum	Contents
Analog Devices Inc./Maxim Integrated MAX44267AUD+	Rail-to-Rail	500 pA	2.4 mA	5 MHz	36 mA	3 V/µs	General Purpose	2	30 V	125 °C	-40 °C	9 V	4 µV	4.4 mm	14-TSSOP	0.173 in	Surface Mount
Analog Devices Inc./Maxim Integrated MAX44267AUD+T	Rail-to-Rail	500 pA	2.4 mA	5 MHz	36 mA	3 V/µs	General Purpose	2	30 V	125 °C	-40 °C	9 V	4 µV	4.4 mm	14-TSSOP	0.173 in	Surface Mount
Analog Devices Inc./Maxim Integrated MAX44267EVKIT#	Single-Ended			5 MHz	36 mA	3 V/µs	General Purpose Standard (General Purpose)											0.0024 mA	Board(s)	Fully Populated	MAX44267	2	Dual	2	Dual Single	15 V	2.25 V	Board
