900318-1

Active

TE Connectivity AMP Connectors

CONN QC RCPT 18-20AWG 0.312

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN QC RCPT 18-20AWG 0.312

Technical Specifications

Parameters and characteristics for this part

Specification	900318-1

Contact Finish	Tin
Contact Material	Brass
Gender	Female
Insulation	Non-Insulated
Insulation Diameter [Max] [diameter]	2.3 mm, 0.091 "
Insulation Diameter [Min] [diameter]	0.063 ", 1.6 mm
Mounting Type	Free Hanging (In-Line), Right Angle
Tab Length	0.335 in
Tab Length	8.5 mm
Tab Thickness	0.031 "
Tab Thickness	0.79 mm
Tab Width	7.92 mm
Tab Width	0.312 in
Terminal Type	Flag, Angled - 90°
Termination	Crimp
Wire Gauge [Max]	20 AWG
Wire Gauge [Min]	17.5 AWG

CONN QC RCPT 18-20AWG 0.312

Part	Termination	Gender	Terminal Type	Tab Width	Tab Width	Insulation	Tab Length	Tab Length	Contact Material	Contact Finish	Tab Thickness	Tab Thickness	Insulation Diameter [Min] [diameter]	Insulation Diameter [Max] [diameter]	Mounting Type	Wire Gauge [Min]	Wire Gauge [Max]
TE Connectivity AMP Connectors 900318-1	Crimp	Female	Angled - 90°, Flag	7.92 mm	0.312 in	Non-Insulated	0.335 in	8.5 mm	Brass	Tin	0.031 "	0.79 mm	0.063 ", 1.6 mm	0.091 ", 2.3 mm	Free Hanging (In-Line), Right Angle	17.5 AWG	20 AWG

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

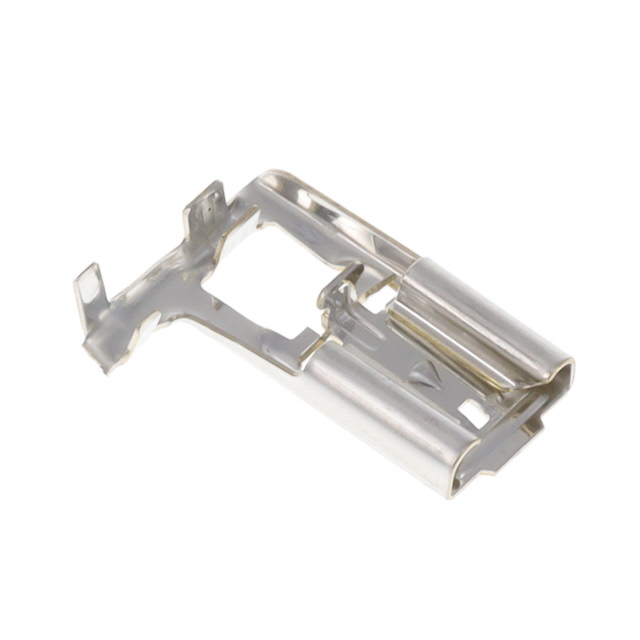

0.312" (7.92mm) Quick Connect Female 18-20 AWG Crimp Connector Non-Insulated

Technical documentation and resources
