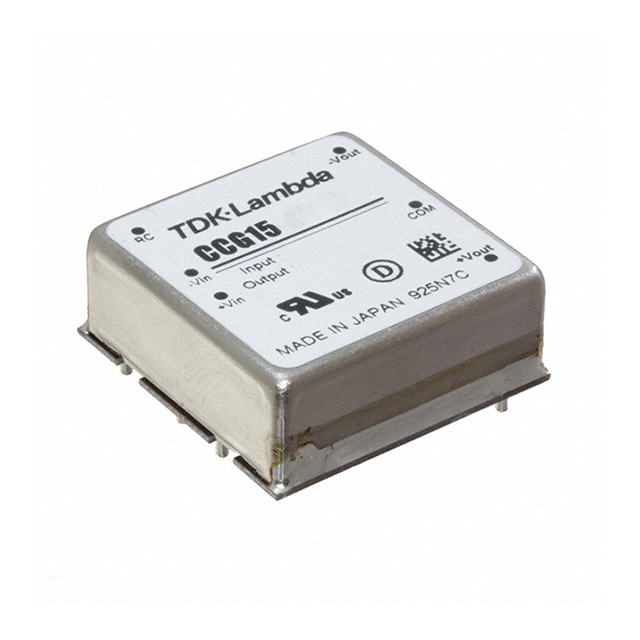

CCG15-24-12D

Active

TDK-LAMBDA

DC DC CONVERTER +/-12V 16W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CCG15-24-12D

Active

TDK-LAMBDA

DC DC CONVERTER +/-12V 16W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 29.28

Description

General part information

CCG15 Series

Isolated Module DC DC Converter 2 Output 12V -12V 650mA, 650mA 9V - 36V Input

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	CCG15-24-12D	CCG15 Series

Applications	ITE (Commercial)	ITE (Commercial)
Approval Agency	CE, CSA, EN, UL, IEC, UKCA	CE, CSA, EN, UL, IEC, UKCA
Control Features	Active Low, Enable	Active Low, Enable
Current - Output (Max)	650 mA	500 - 650 mA
Current - Output (Max)	650 mA	500 - 650 mA
Current - Output (Max)	-	1 - 4 A
Efficiency	89 %	85 - 90 %
Features	OCP, Remote On/Off	OCP, Remote On/Off, Adjustable Output
Mounting Type	Through Hole	Through Hole
Number of Outputs	2	1 - 2
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	6-DIP Module	6-DIP Module
Power (Watts)	16 W	15 - 16 W
Size / Dimension [x]	1 in	1 in
Size / Dimension [x]	25.4 mm	25.4 mm
Size / Dimension [y]	25.4 mm	25.4 mm
Size / Dimension [y]	25.4 mm	25.4 mm
Size / Dimension [z]	0.39 in	0.39 in
Size / Dimension [z]	9.9 mm	9.9 mm
Standard Number	62368-1	62368-1
Type	Isolated Module	Isolated Module
Voltage - Input (Max) [Max]	36 V	36 - 76 V
Voltage - Input (Min) [Min]	9 V	9 - 18 V
Voltage - Isolation	1.5 kV	1.5 kV
Voltage - Output 1	12 V	3.3 - 15 V
Voltage - Output 2	-12 V	-15 - -12 V

CCG15 Series

DC DC CONVERTER +/-12V 16W

Part	Standard Number	Voltage - Isolation	Voltage - Output 1	Operating Temperature [Max]	Operating Temperature [Min]	Number of Outputs	Control Features	Power (Watts)	Applications	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Package / Case	Current - Output (Max)	Current - Output (Max)	Voltage - Input (Max) [Max]	Efficiency	Approval Agency	Voltage - Output 2	Voltage - Input (Min) [Min]	Features	Mounting Type	Type	Current - Output (Max) [Max]
TDK-LAMBDA CCG15-24-12D	62368-1	1.5 kV	12 V	85 °C	-40 °C	2	Active Low, Enable	16 W	ITE (Commercial)	25.4 mm	1 in	0.39 in	25.4 mm	25.4 mm	9.9 mm	6-DIP Module	650 mA	650 mA	36 V	89 %	CE, CSA, EN, IEC, UKCA, UL	-12 V	9 V	OCP, Remote On/Off	Through Hole	Isolated Module
TDK-LAMBDA CCG15-48-12S	62368-1	1.5 kV	12 V	85 °C	-40 °C	1	Active Low, Enable	15 W	ITE (Commercial)	25.4 mm	1 in	0.39 in	25.4 mm	25.4 mm	9.9 mm	6-DIP Module			76 V	88 %	CE, CSA, EN, IEC, UKCA, UL		18 V	Adjustable Output, OCP, Remote On/Off	Through Hole	Isolated Module	1.3 A
TDK-LAMBDA CCG15-48-03S	62368-1	1.5 kV	3.3 V	85 °C	-40 °C	1	Active Low, Enable	15 W	ITE (Commercial)	25.4 mm	1 in	0.39 in	25.4 mm	25.4 mm	9.9 mm	6-DIP Module			76 V	85 %	CE, CSA, EN, IEC, UKCA, UL		18 V	Adjustable Output, OCP, Remote On/Off	Through Hole	Isolated Module	4 A
TDK-LAMBDA CCG15-24-03S	62368-1	1.5 kV	3.3 V	85 °C	-40 °C	1	Active Low, Enable	15 W	ITE (Commercial)	25.4 mm	1 in	0.39 in	25.4 mm	25.4 mm	9.9 mm	6-DIP Module			36 V	85 %	CE, CSA, EN, IEC, UKCA, UL		9 V	Adjustable Output, OCP, Remote On/Off	Through Hole	Isolated Module	4 A
TDK-LAMBDA CCG15-48-05S	62368-1	1.5 kV	5 V	85 °C	-40 °C	1	Active Low, Enable	15 W	ITE (Commercial)	25.4 mm	1 in	0.39 in	25.4 mm	25.4 mm	9.9 mm	6-DIP Module			76 V	87 %	CE, CSA, EN, IEC, UKCA, UL		18 V	Adjustable Output, OCP, Remote On/Off	Through Hole	Isolated Module	3 A
TDK-LAMBDA CCG15-48-15S	62368-1	1.5 kV	15 V	85 °C	-40 °C	1	Active Low, Enable	15 W	ITE (Commercial)	25.4 mm	1 in	0.39 in	25.4 mm	25.4 mm	9.9 mm	6-DIP Module			76 V	88 %	CE, CSA, EN, IEC, UKCA, UL		18 V	Adjustable Output, OCP, Remote On/Off	Through Hole	Isolated Module	1 A
TDK-LAMBDA CCG15-24-05S	62368-1	1.5 kV	5 V	85 °C	-40 °C	1	Active Low, Enable	15 W	ITE (Commercial)	25.4 mm	1 in	0.39 in	25.4 mm	25.4 mm	9.9 mm	6-DIP Module			36 V	87 %	CE, CSA, EN, IEC, UKCA, UL		9 V	Adjustable Output, OCP, Remote On/Off	Through Hole	Isolated Module	3 A
TDK-LAMBDA CCG15-48-12D	62368-1	1.5 kV	12 V	85 °C	-40 °C	2	Active Low, Enable	16 W	ITE (Commercial)	25.4 mm	1 in	0.39 in	25.4 mm	25.4 mm	9.9 mm	6-DIP Module	650 mA	650 mA	76 V	89 %	CE, CSA, EN, IEC, UKCA, UL	-12 V	18 V	OCP, Remote On/Off	Through Hole	Isolated Module
TDK-LAMBDA CCG15-48-15D	62368-1	1.5 kV	15 V	85 °C	-40 °C	2	Active Low, Enable	15 W	ITE (Commercial)	25.4 mm	1 in	0.39 in	25.4 mm	25.4 mm	9.9 mm	6-DIP Module	500 mA	500 mA	76 V	90 %	CE, CSA, EN, IEC, UKCA, UL	-15 V	18 V	OCP, Remote On/Off	Through Hole	Isolated Module
