18282-3PG-311

Active

Conxall/Switchcraft

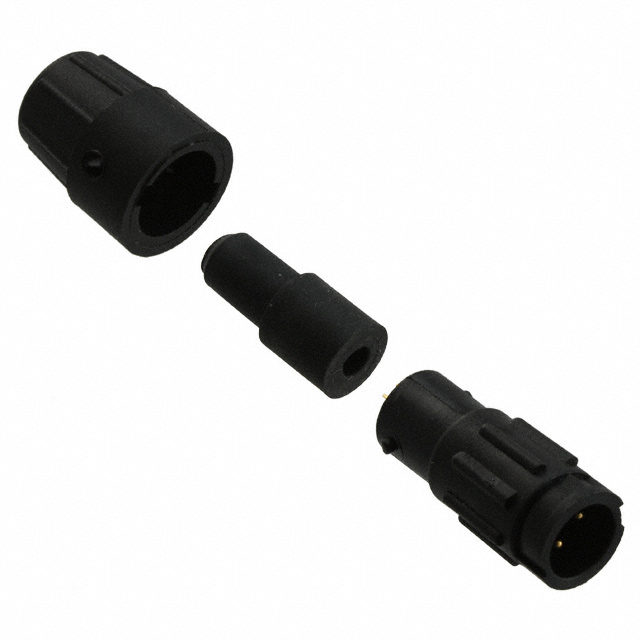

CONN RCPT MALE 3P GOLD SLDR CUP

Search across all available documentation for this part.

Active

Conxall/Switchcraft

CONN RCPT MALE 3P GOLD SLDR CUP

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	18282-3PG-311	18282-3P Series

Applications	Medical, Data, Instrumentation, Industrial	Medical, Data, Instrumentation, Industrial
Backshell Material, Plating	Thermoplastic	Thermoplastic
Cable Opening	-	4.57 mm
Cable Opening	-	0.18 in
Cable Opening	-	0.2 in
Cable Opening	-	5.08 mm
Cable Opening [diameter]	2.29 mm	2.29 mm
Cable Opening [diameter]	0.14 in, 0.09 in	0.09 - 0.14 in
Cable Opening [diameter]	3.56 mm	3.56 mm
Color	Black	Black
Connector Type	Receptacle, Male Pins	Receptacle, Male Pins
Contact Finish - Mating	Gold	Gold
Contact Material	Copper Alloy	Copper Alloy
Current Rating (Amps)	7.5 A	7.5 A
Fastening Type	Bayonet Lock	Bayonet Lock
Features	Backshell	Backshell
Ingress Protection	IP67 - Dust Tight, Waterproof	IP67 - Dust Tight, Waterproof
Material Flammability Rating	UL94 HB	UL94 HB
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	Keyed	Keyed
Primary Material	Plastic	Plastic
Shielding	Unshielded	Unshielded
Voltage Rating	600 VAC	600 VAC

CONN RCPT MALE 3P GOLD SLDR CUP

Part	Ingress Protection	Voltage Rating	Backshell Material, Plating	Current Rating (Amps)	Contact Finish - Mating	Contact Material	Shielding	Applications	Primary Material	Cable Opening [Min] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Max] [custom]	Features	Connector Type	Fastening Type	Color	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Material Flammability Rating	Orientation	Cable Opening [diameter]	Cable Opening [diameter]	Cable Opening [diameter]
Conxall/Switchcraft 18282-3PG-318	IP67 - Dust Tight, Waterproof	600 VAC	Thermoplastic	7.5 A	Gold	Copper Alloy	Unshielded	Data, Industrial, Instrumentation, Medical	Plastic	4.57 mm	0.18 in	0.2 in	5.08 mm	Backshell	Male Pins, Receptacle	Bayonet Lock	Black	Free Hanging (In-Line)	85 °C	-40 °C	UL94 HB	Keyed
Conxall/Switchcraft 18282-3PG-311	IP67 - Dust Tight, Waterproof	600 VAC	Thermoplastic	7.5 A	Gold	Copper Alloy	Unshielded	Data, Industrial, Instrumentation, Medical	Plastic					Backshell	Male Pins, Receptacle	Bayonet Lock	Black	Free Hanging (In-Line)	85 °C	-40 °C	UL94 HB	Keyed	2.29 mm	0.09 in, 0.14 in	3.56 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3 Position Circular Connector Receptacle, Male Pins Solder Cup
