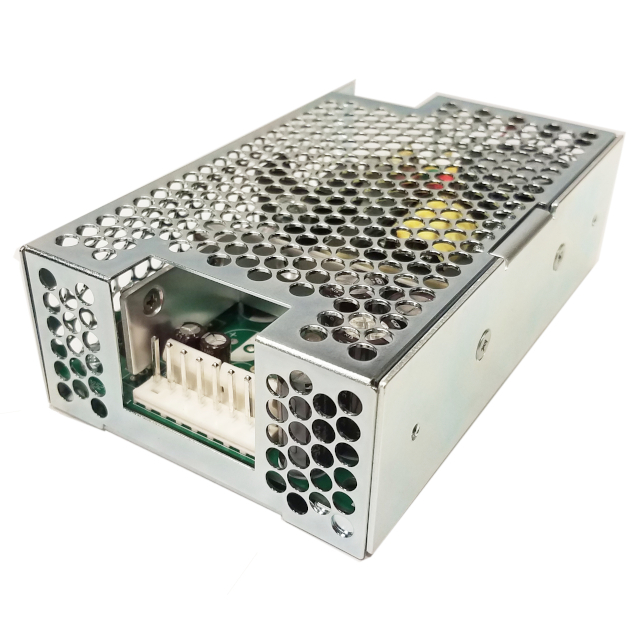

1010097CHCO

Integrated Power Designs

AC/DC CONVERTER 5V 45W

Search across all available documentation for this part.

Integrated Power Designs

AC/DC CONVERTER 5V 45W

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Enclosed AC DC Converters 1 Output 5V 100 ~ 240 VAC Input

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	1010097CHCO	1010097 Series

Applications	Industrial, ITE (Commercial)	Industrial, ITE (Commercial)
Approval Agency	CE, UKCA, TUV	CE, UKCA, TUV
Current - Output 1	9 A	9 A
Efficiency	70 %	70 %
Features	Adjustable Output, Universal Input	Adjustable Output, Universal Input
Mounting Type	Chassis Mount	Chassis Mount
Number of Outputs	1	1
Operating Temperature [Max]	50 °C	50 °C
Operating Temperature [Min]	0 °C	0 °C
Size / Dimension [x]	130.8 mm	130.8 mm
Size / Dimension [x]	5.15 in	5.15 in
Size / Dimension [y]	82.6 mm	82.6 mm
Size / Dimension [y]	3.25 "	3.25 "
Size / Dimension [z]	1.56 in	1.56 in
Size / Dimension [z]	39.6 mm	39.6 mm
Standard Number	62368-1	62368-1
Type	Enclosed	Enclosed, Chassis
Voltage - Input [Max]	240 VAC	240 VAC
Voltage - Input [Min]	100 VAC	100 VAC
Voltage - Output 1	5 V	5 V

AC/DC CONVERTER 5V 45W

Part	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Type	Applications	Voltage - Output 1	Number of Outputs	Efficiency	Voltage - Input [Max]	Voltage - Input [Min]	Features	Mounting Type	Approval Agency	Operating Temperature [Min]	Operating Temperature [Max]	Current - Output 1	Standard Number
Integrated Power Designs 1010097CHCO	82.6 mm	1.56 in	130.8 mm	39.6 mm	5.15 in	3.25 "	Enclosed	Industrial, ITE (Commercial)	5 V	1	70 %	240 VAC	100 VAC	Adjustable Output, Universal Input	Chassis Mount	CE, TUV, UKCA	0 °C	50 °C	9 A	62368-1
Integrated Power Designs 1010097CH	82.6 mm	1.56 in	130.8 mm	39.6 mm	5.15 in	3.25 "	Chassis	Industrial, ITE (Commercial)	5 V	1	70 %	240 VAC	100 VAC	Adjustable Output, Universal Input	Chassis Mount	CE, TUV, UKCA	0 °C	50 °C	9 A	62368-1
