Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 5.35 | |
| 50 | $ 4.24 | |||
| 100 | $ 3.64 | |||
| 500 | $ 3.23 | |||
| 1000 | $ 2.77 | |||
| 2000 | $ 2.61 | |||
General part information

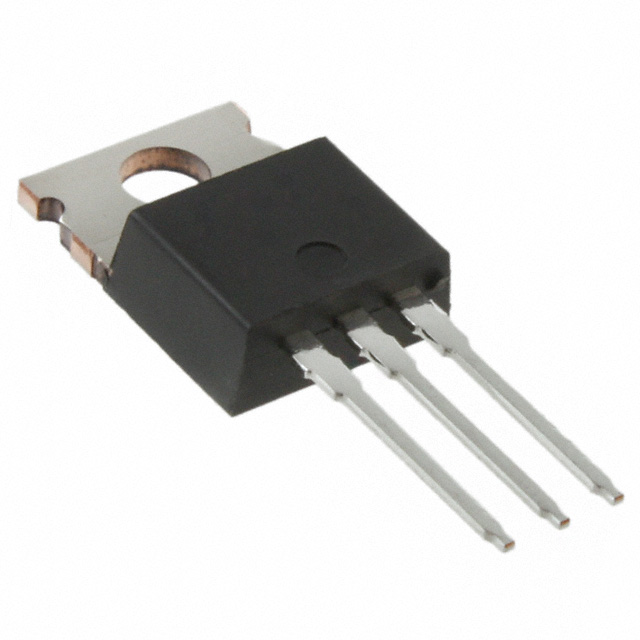

P-Channel 60 V 90A (Tc) 2.4W (Ta), 250W (Tc) Through Hole TO-220AB
Technical documentation and resources
Parameters and characteristics commom to parts in this series
| Specification | SUP90P06-09L-E3 | SUP90 Series |
|---|---|---|
| Current - Continuous Drain (Id) @ 25°C | 90 A | 90 A |
| Drain to Source Voltage (Vdss) | 60 V | 30 - 75 V |
| Drive Voltage (Max Rds On, Min Rds On) | 10 V, 4.5 V | 4.5 - 10 V |
| FET Type | P-Channel | N-Channel, P-Channel |
| Gate Charge (Qg) (Max) @ Vgs | - | 105 - 257 nC |
| Gate Charge (Qg) (Max) @ Vgs [Max] | 240 nC | 131 - 240 nC |
| Input Capacitance (Ciss) (Max) @ Vds | 9200 pF | 4250 - 12065 pF |
| Mounting Type | Through Hole | Through Hole |
| Operating Temperature [Max] | 175 ░C | 150 - 175 ░C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Package / Case | TO-220-3 | TO-220-3 |
| Power Dissipation (Max) | 250 W, 2.4 W | 2.4 - 300 W |
| Rds On (Max) @ Id, Vgs | 9.3 mOhm | 2.9 - 9.3 mOhm |
| Rds On (Max) @ Id, Vgs | - | 6.8 - 7.7 mOhm |
| Supplier Device Package | TO-220AB | TO-220AB |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Vgs (Max) | 20 V | 20 V |
| Vgs(th) (Max) @ Id | 3 V | 2.5 - 4.5 V |
MOSFET N-CH 60V 90A TO220AB
| Part | Package / Case | Mounting Type | Vgs (Max) | FET Type | Input Capacitance (Ciss) (Max) @ Vds | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs [Max] | Operating Temperature [Min] | Operating Temperature [Max] | Drain to Source Voltage (Vdss) | Drive Voltage (Max Rds On, Min Rds On) | Technology | Supplier Device Package | Current - Continuous Drain (Id) @ 25°C | Power Dissipation (Max) | Gate Charge (Qg) (Max) @ Vgs | Rds On (Max) @ Id, Vgs [Max] | Rds On (Max) @ Id, Vgs |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Vishay Siliconix SUP90N06-5M0P-E3 | TO-220-3 | Through Hole | 20 V | N-Channel | 6190 pF | 4.5 V | 160 nC | -55 °C | 175 ░C | 60 V | 10 V | MOSFET (Metal Oxide) | TO-220AB | 90 A | 3.75 W, 300 W | |||
Vishay Siliconix SUP90N08-6M8P-E3 | TO-220-3 | Through Hole | 20 V | N-Channel | 4620 pF | 4.5 V | -55 °C | 175 ░C | 75 V | 10 V | MOSFET (Metal Oxide) | TO-220AB | 90 A | 3.75 W, 272 W | 115 nC | 6.8 mOhm | ||
Vishay Siliconix SUP90N08-7M7P-E3 | TO-220-3 | Through Hole | 20 V | N-Channel | 4250 pF | 4.5 V | -55 °C | 150 °C | 75 V | 10 V | MOSFET (Metal Oxide) | TO-220AB | 90 A | 3.75 W, 208.3 W | 105 nC | 7.7 mOhm | ||
Vishay Siliconix SUP90P06-09L-E3 | TO-220-3 | Through Hole | 20 V | P-Channel | 9200 pF | 3 V | 240 nC | -55 °C | 175 ░C | 60 V | 4.5 V, 10 V | MOSFET (Metal Oxide) | TO-220AB | 90 A | 2.4 W, 250 W | 9.3 mOhm | ||
Vishay Siliconix SUP90N04-3M3P-GE3 | TO-220-3 | Through Hole | 20 V | N-Channel | 5286 pF | 2.5 V | 131 nC | -55 °C | 150 °C | 40 V | 4.5 V, 10 V | MOSFET (Metal Oxide) | TO-220AB | 90 A | 3.1 W, 125 W | 3.3 mOhm | ||
Vishay Siliconix SUP90N03-03-E3 | TO-220-3 | Through Hole | 20 V | N-Channel | 12065 pF | 2.5 V | -55 °C | 175 ░C | 30 V | 4.5 V, 10 V | MOSFET (Metal Oxide) | TO-220AB | 90 A | 3.75 W, 250 W | 257 nC | 2.9 mOhm |
