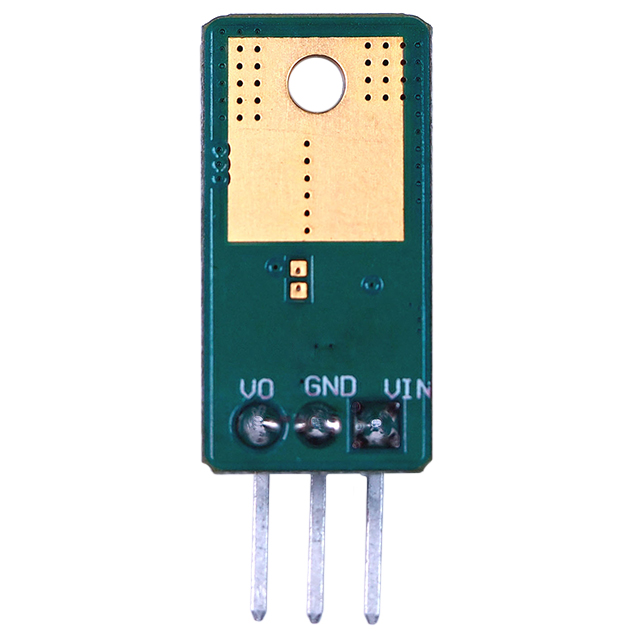

MEZD71203A-C

Active

MONOLITHIC POWER SYSTEMS (MPS)

DC DC CONVERTER 1.5V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

MEZD71203A-C

Active

MONOLITHIC POWER SYSTEMS (MPS)

DC DC CONVERTER 1.5V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MEZD71203A-C

Applications	ITE (Commercial)
Current - Output (Max) [Max]	3 A
Features	OVP, UVLO, SCP, OCP, OTP
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	3-SIP Module
Size / Dimension [x]	20 mm
Size / Dimension [x]	0.79 in
Size / Dimension [y]	0.39 "
Size / Dimension [y]	10 mm
Size / Dimension [z]	0.16 in
Size / Dimension [z]	4 mm
Type	Linear Regulator Replacement
Voltage - Input (Max) [Max]	16 V
Voltage - Input (Min) [Min]	5 V
Voltage - Output 1	1.5 V

MEZD71203 Series

Part	Applications	Number of Outputs	Type	Package / Case	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Voltage - Output 1	Voltage - Input (Max) [Max]	Current - Output (Max) [Max]	Voltage - Input (Min) [Min]	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Features
MONOLITHIC POWER SYSTEMS (MPS) MEZD71203A-D	ITE (Commercial)	1	Linear Regulator Replacement	3-SIP Module	0.16 in	20 mm	0.39 "	10 mm	0.79 in	4 mm	1.8 V	16 V	3 A	5 V	Through Hole	85 °C	-40 °C	OCP OTP OVP SCP UVLO
MONOLITHIC POWER SYSTEMS (MPS) MEZD71203A-F	ITE (Commercial)	1	Linear Regulator Replacement	3-SIP Module	0.16 in	20 mm	0.39 "	10 mm	0.79 in	4 mm	3.3 V	16 V	3 A	5 V	Through Hole	85 °C	-40 °C	OCP OTP OVP SCP UVLO
MONOLITHIC POWER SYSTEMS (MPS) MEZD71203A-A	ITE (Commercial)	1	Linear Regulator Replacement	3-SIP Module	0.16 in	20 mm	0.39 "	10 mm	0.79 in	4 mm	1 V	16 V	3 A	5 V	Through Hole	85 °C	-40 °C	OCP OTP OVP SCP UVLO
MONOLITHIC POWER SYSTEMS (MPS) MEZD71203A-B	ITE (Commercial)	1	Linear Regulator Replacement	3-SIP Module	0.16 in	20 mm	0.39 "	10 mm	0.79 in	4 mm	1.2 V	16 V	3 A	5 V	Through Hole	85 °C	-40 °C	OCP OTP OVP SCP UVLO
MONOLITHIC POWER SYSTEMS (MPS) MEZD71203A-E	ITE (Commercial)	1	Linear Regulator Replacement	3-SIP Module	0.16 in	20 mm	0.39 "	10 mm	0.79 in	4 mm	2.5 V	16 V	3 A	5 V	Through Hole	85 °C	-40 °C	OCP OTP OVP SCP UVLO
MONOLITHIC POWER SYSTEMS (MPS) MEZD71203A-C	ITE (Commercial)	1	Linear Regulator Replacement	3-SIP Module	0.16 in	20 mm	0.39 "	10 mm	0.79 in	4 mm	1.5 V	16 V	3 A	5 V	Through Hole	85 °C	-40 °C	OCP OTP OVP SCP UVLO

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	50	$ 5.09

Description

General part information

MEZD71203 Series

Linear Regulator Replacement DC DC Converter 1 Output 1.5V 3A 5V - 16V Input
