624 060 3 0 RT

Active

Rennsteig Tools, Inc.

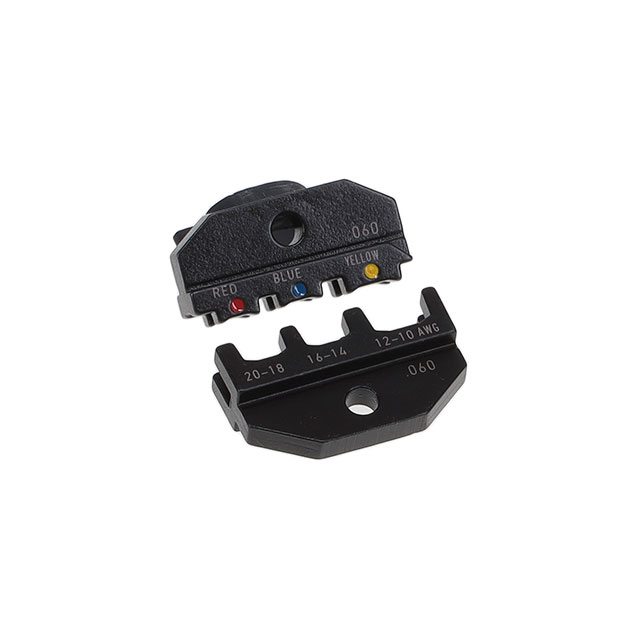

CRIMPING DIE SET FOR PEW12

Search across all available documentation for this part.

Active

Rennsteig Tools, Inc.

CRIMPING DIE SET FOR PEW12

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	624 060 3 0 RT	624 060 Series

Compatible Tools	-	624 060-3-3 RT
For Use With/Related Products	Splices and Terminals	Terminals, Splices and Terminals
For Use With/Related Products	-	22 AWG
For Use With/Related Products	-	10 AWG
Ratcheting	Ratchet	Ratchet
Tool Type	Hand Crimper	Hand Crimper, Die Set
Wire Entry Location	Side Entry	Side Entry
Wire Gauge or Range - AWG [Max]	20 AWG	20 AWG
Wire Gauge or Range - AWG [Min]	10 AWG	10 AWG

CRIMPING SYSTEM TOOL 20-10 AWG

Part	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Wire Entry Location	Ratcheting	For Use With/Related Products	Tool Type	Compatible Tools	For Use With/Related Products [Max]	For Use With/Related Products [Min]
Rennsteig Tools, Inc. 624 060 3 RT	10 AWG	20 AWG	Side Entry	Ratchet	Terminals	Hand Crimper
Rennsteig Tools, Inc. 624 060 3 0 RT	10 AWG	20 AWG	Side Entry	Ratchet	Splices and Terminals	Hand Crimper
Rennsteig Tools, Inc. 624 060-3 3 0 RT					Splices and Terminals	Die Set	624 060-3-3 RT	22 AWG	10 AWG

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Hand Crimper Tool Splices and Terminals
