M2GL090S-1FG676I

Obsolete

Microsemi Corporation

IC FPGA 425 I/O 676FBGA

Search across all available documentation for this part.

Obsolete

Microsemi Corporation

IC FPGA 425 I/O 676FBGA

Technical Specifications

Parameters and characteristics for this part

Specification	M2GL090S-1FG676I

Mounting Type	Surface Mount
Number of I/O	425
Number of Logic Elements/Cells	86316
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 C

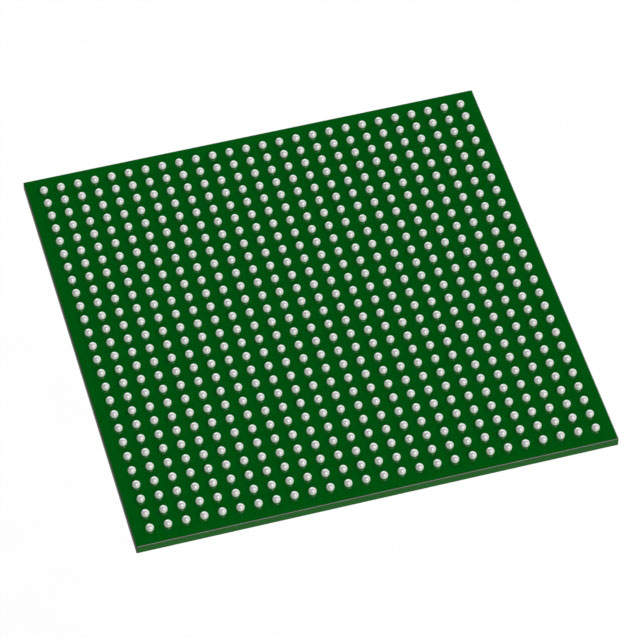

Package / Case	676-BGA
Supplier Device Package	676-FBGA (27x27)
Voltage - Supply [Max]	2.625 V
Voltage - Supply [Min]	1.14 V

Part	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Supplier Device Package	Voltage - Supply [Max]	Voltage - Supply [Min]	Number of Logic Elements/Cells	Mounting Type	Number of I/O
Microsemi Corporation M2GL090S-1FG676I	100 °C	-40 C	676-BGA	676-FBGA (27x27)	2.625 V	1.14 V	86316	Surface Mount	425

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

IGLOO2 Field Programmable Gate Array (FPGA) IC 425 2648064 86316 676-BGA

Technical documentation and resources
