OVQ12S30G7

Obsolete

TT Electronics/Optek Technology

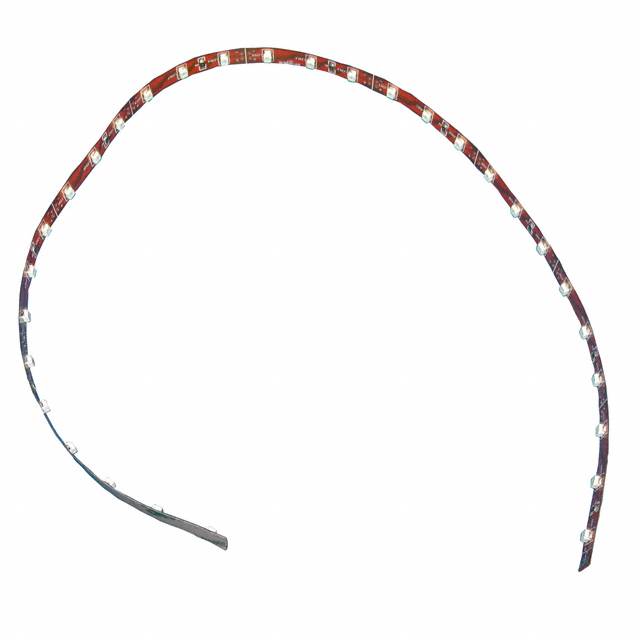

LED ENG GREEN LINEAR STRIP

Search across all available documentation for this part.

Obsolete

TT Electronics/Optek Technology

LED ENG GREEN LINEAR STRIP

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	OVQ12S30G7	OVQ12S30 Series

CCT (K)	-	5500 K
Color	Green	Cool, White, Yellow, Green, Red, Blue
Configuration	Linear Light Strip, Flexible	Linear Light Strip, Flexible
Current - Max [Max]	133 mA	133 - 158 mA
Current - Test	133 mA	133 - 158 mA
Height [z]	2.29 mm	2.29 mm
Lens Type	Flat	Flat
Luminous Flux @ Current/Temperature	-	68 lm
Size / Dimension [x]	500 mm	500 mm
Size / Dimension [y]	8 mm	8 mm
Type	LED Engine	LED Engine
Viewing Angle	120 °	120 °
Wavelength	525 nm	470 - 625 nm

LED ENG CL WHT LNR STRIP 5500K

Part	CCT (K)	Current - Test	Viewing Angle	Configuration	Height [z]	Luminous Flux @ Current/Temperature	Size / Dimension [x]	Size / Dimension [y]	Type	Lens Type	Current - Max [Max]	Color	Wavelength
TT Electronics/Optek Technology OVQ12S30W7	5500 K	133 mA	120 °	Flexible, Linear Light Strip	2.29 mm	68 lm	500 mm	8 mm	LED Engine	Flat	133 mA	Cool, White
TT Electronics/Optek Technology OVQ12S30Y7		158 mA	120 °	Flexible, Linear Light Strip	2.29 mm		500 mm	8 mm	LED Engine	Flat	158 mA	Yellow	590 nm
TT Electronics/Optek Technology OVQ12S30G7		133 mA	120 °	Flexible, Linear Light Strip	2.29 mm		500 mm	8 mm	LED Engine	Flat	133 mA	Green	525 nm
TT Electronics/Optek Technology OVQ12S30R7		158 mA	120 °	Flexible, Linear Light Strip	2.29 mm		500 mm	8 mm	LED Engine	Flat	158 mA	Red	625 nm
TT Electronics/Optek Technology OVQ12S30B7		133 mA	120 °	Flexible, Linear Light Strip	2.29 mm		500 mm	8 mm	LED Engine	Flat	133 mA	Blue	470 nm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

LED Lighting COBs Engines Modules LED Engine - Green Linear Light Strip, Flexible
